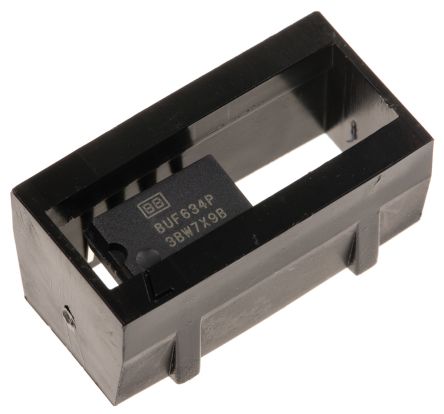

点击放大查看
BUF634P
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP BUFFER 180MHZ 8DIP High Speed Operational Amplifiers High-Speed Buffer OP Amp Single GP �18V 8-Pin PDIP Tube IC, AMP, BUFFER, 180MHZ, PDIP8 Driver; buffer; 250mA; -4÷5V; Channels:1; DIP8 250mA High-Speed Buffer Buffer IC DIL-8, BUF634, BUF634P, Texas Instruments Texas Instruments 运算放大器, 180MHz, 8针 PDIP |
| 分类 |
商业参数
| 产品 | Buffer Amplifier | 产品类别 | High Speed Operational Amplifiers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 100 dB | 输出端 | :Single Ended |
| 压摆率 | 2000@±15V V/us | 输出类型 | No |
| 输入功率 | Dual | 建立时间 | 200 |
| 平带噪声电压 | 4 | 额定电压 | -4...5V |
| 输出电流 | 15mA | 供电电压 | ±2.25 V |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 5µA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 30mV | 增益带宽积 | :180MHz |
| 轨到轨工作 | No | 静态电流 (Iq) | 20 |
| 输入偏置电流（最大） | 20@±15V uA | 输出电流/通道 | 250mA |
| 供电电压 (Vcc/Vdd) | 36 | 输入噪声电压密度 | 4@±15V nV/rtHz |
| 电源电压范围（典型） | �3/�5/�9/�12 V | 输入失调电压（最大） | 100@±15V mV |
| 电压输出差（典型值）@ 距离 | 0.087 dB | ||
机械参数
| 宽度 | 6.6(Max) | 重量 | 0.018455 oz |
| 带宽 | 180 | 包装方式 | Tube |
| 引脚样式 | Through Hole | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | -3dB带宽 | 180MHz |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 10.16(Max) |
| 包装数量 | PDIP | 位数 | 8 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 50 | 类型 | General Purpose Amplifier |
| 系列 | BUF634 | 关断 | No |
| 软件 | SBOS030 | 技术 | Bipolar |
| 制造商全称 | High Speed Amplifier | 放大器类型 | Buffer |
| 单元数量 | 1 | 电路数 | 1 |
| 使用的IC/零件 | buffer | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -40 to 85 °C | ||
