点击放大查看

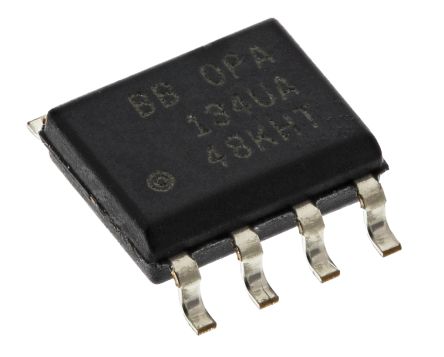

OPA134UA
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP AUDIO 8MHZ 8SOIC 3.91mm OPA134UA, Audio Amplifier 8MHz 86dB +85°C 8-Pin SOIC Audio Amplifiers SoundPlus(TM) Hi-Perf Aud Oper Amp OP Amp Single GP ?18V 8-Pin SOIC Tube IC, AUDIO OP-AMP, 8MHZ, SOIC-8 OP AMP, HIGH PERF AUDIO, SOIC8, 134 Operational amplifier; 8MHz; 2.5÷18VDC; Channels:1; SO8 SoundPlus(TM) High Performance Audio Operational Amplifiers Operational Amplifier Single 8 MHz SO-8, OPA134, OPA134UA, Texas Instruments Texas Instruments 音频放大器, 8MHz 86dB, +85 °C, 8引脚 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Audio Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :134 | 抗辐射加固 | No |
电气参数
| 增益 | 120 dB | 电源抑制比 | 90 dB |
| 阻抗 | :2kohm | 压摆率 | 20@±15V V/us |
| 1kHz噪声电压 | 8 | 输出类型 | No |
| 失调漂移 | 2 | 输入功率 | Dual |
| 上升时间（典型） | 20V/μs | 晶体管类型 | :Low Noise |
| 共模抑制比、电源抑制比（典型） | 86 dB | 输出电流 | 4mA |
| 供电电压 | ±2.5 V | 供电类型 | Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 5pA | 最大额定电流 | Catalog |
| 阻抗（最大）（Zzt） | :600ohm | ADC/DAC 数量 | :1 |
| 最小输入电压 | 500µV | 增益带宽积 | 8 MHz |
| 轨到轨工作 | No | 静态电流 (Iq) | 5 |
| 输入偏置电流（最大） | 0.0001@±15V uA | 输出电流/通道 | 35mA |
| 输入失调电流（最大） | 0.00005@±15V | 供电电压 (Vcc/Vdd) | 36 |
| 25°C失调电压 | 2 | 输入噪声电流密度 | 0.003@±15V pA/rtHz |
| 输入噪声电压密度 | 8@±15V nV/rtHz | 频段（低/高） | 8MHz |
| 输入失调电压（最大） | 2@±15V mV | 电压输出差（典型值）@ 距离 | 120 dB |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002677 oz |
| 带宽 | :8MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOIC |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 5(Max) | 包装数量 | SOIC |
| 尺寸/外形 | 4.9 x 3.91 x 1.58mm | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 150 | 类型 | General Purpose Amplifier |
| 系列 | OPA134 | 已删除 | Compliant |
| 关断 | No | 软件 | SBOS058 |
| 基本单元 | :134 | 技术 | FET |
| 制造商全称 | Wideband Amplifier | 放大器类型 | Audio |
| 单元数量 | 1 | 电路数 | 1 |
| 使用的IC/零件 | View | 其他规格 | :Low Noise |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
