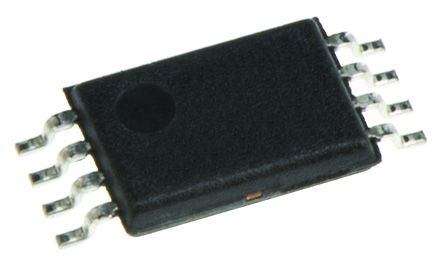

LM358PW
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Dual GP ±16V/32V 8-Pin TSSOP Tube IC OPAMP GP 700KHZ 8TSSOP Operational Amplifiers - Op Amps Dual General-Purpose Op Amp OP Amp Dual GP ?16V/32V 8-Pin TSSOP Tube OP AMP, DUAL LOW POWER, SMD, TSSOP8 Dual Operational Amplifiers Texas Instruments 双 运算放大器, 700kHz, 5 → 28 V, 8针 TSSOP |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 150 | 标准封装名称 | TSSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :358 | 抗辐射加固 | No |
电气参数
| 增益 | 100 dB | 压摆率 | 0.3@±15V V/us |
| 1kHz噪声电压 | 40 | 输出类型 | No |
| 失调漂移 | 7 | 输入功率 | Single/Dual |
| 晶体管类型 | :Low Power | 共模抑制比、电源抑制比（典型） | 65 dB |
| 输出电流 | 1mA | 供电电流 | 1.2@5V@0C to 70C mA |
| 供电电压 | 3 V | 供电类型 | Single|Dual |
| 通道数量 | 2 | 元件数量 | 2 |
| 输入偏置电流 | 20nA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :2 | 最小输入电压 | 3mV |
| 增益带宽积 | 0.7 MHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 0.6 | 输入偏置电流（最大） | 0.25@5V uA |
| 输出电流/通道 | 30mA | 输入失调电流（最大） | 0.05@5V |
| 供电电压 (Vcc/Vdd) | 32 | 25°C失调电压 | 7 |
| 输入噪声电压密度 | 40@±15V nV/rtHz | 输入失调电压（最大） | 7@30V mV |
| 电压输出差（典型值）@ 距离 | 100 dB | ||
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.001376 oz |
| 带宽 | :700kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.1(Max) |
| 包装数量 | TSSOP | 位数 | 8 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 8-TSSOP |
产品信息
| 类型 | General Purpose Amplifier | 系列 | LM358 |
| 关断 | No | 软件 | SLOS068T |
| 基本单元 | :358 | 技术 | Bipolar |
| 制造商全称 | High Gain Amplifier | 放大器类型 | General Purpose |
| 图案编号 | Y | 功能框图 | fbd_slos068t.gif |
| 电路数 | 2 | 使用的IC/零件 | View |
| 其他规格 | :High-gain, frequency-compensated, Operational | 印刷电路板数量 | 8 |
环境参数
| 温度范围 | :Commercial | 测试温度 | 0 to 70 |
| 工作温度 | 0 to 70 °C | ||
