点击放大查看

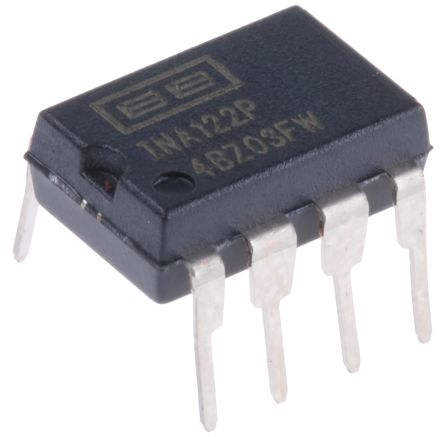

INA122P

制造商	Texas Instruments Incorporated
描述	SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin PDIP Tube IC OPAMP INSTR 120KHZ 8DIP Instrumentation Amplifiers Single Supply MicroPower SP Amp INSTR Amp Single R-R O/P �18V/36V 8-Pin PDIP Tube IC, AMP INST, SINGLE SUPPLY, PDIP8 Single Supply, MicroPower Instrumentation Amplifier Texas Instruments 仪表放大器, 0.25mV偏置, 83dB CMRR, 轨至轨输出, 5 V电源, 8针 PDIP封装
分类	集成电路放大器与比较器比较器

对参数有疑问？问 AI 助手

商业参数

产品类别	Instrumentation Amplifiers	标准包装数量	Rail / Tube
工厂包装数量	50	标准封装名称	PDIP

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423300
零件状态	ACTIVE	抗辐射加固	No

电气参数

增益	80 dB	电源抑制比	100 dB
输出端	:Single Ended	压摆率	0.16 V/µs
输出类型	Differential\|Rail to Rail	输入功率	Single/Dual
共模抑制比、电源抑制比（典型）	83 dB	输出电流	60µA
供电电压	2.2 V	供电类型	Single\|Dual
通道数量	1	元件数量	2
输入电阻	10000 MOhms	非易失性存储器	0.002
输入偏置电流	10nA	最大额定电流	Catalog
噪声（10Hz至10kHz）	60	ADC/DAC 数量	:2
最小输入电压	80(Typ) dB	增益带宽积	120 KHz
轨到轨工作	Rail to Rail Output	静态电流 (Iq)	0.06
输入偏置电流（最大）	0.025@5V	输出电流/通道	30mA
供电电压 (Vcc/Vdd)	36	输入失调电压（最大）	250

机械参数

宽度	6.6(Max)	重量	0.018646 oz
带宽	:120kHz	包装方式	Tube
引脚样式	Through Hole	端接方式	:Through Hole
安装类型	Through Hole	-3dB带宽	120kHz
安装样式	Through Hole	引脚数	:8
封装形式	8PDIP	冷却的封装	PDIP
材料表面处理	:-	总长度	10.16(Max)
包装数量	PDIP	位数	8
外壳尺寸-插件	5.08(Max) - 0.51(Min)	供应商器件封装	8-PDIP

产品信息

类型	Instrumentation Amplifier	系列	INA122
软件	SBOS069	放大器类型	Instrumentation
电路数	1	使用的IC/零件	View
其他规格	:3µV/°C	印刷电路板数量	8
可编程特性	:10000

环境参数

测试温度

-40 to 85

工作温度

-40 to 85 °C
