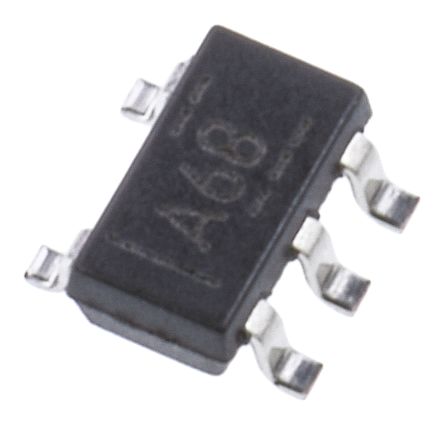

INA168NA/250
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp Current Sense Amp Single 36V 5-Pin SOT-23 T/R IC CURRENT MONITOR 0.5% SOT23-5 INA168NA/250, Current Shunt Monitor Single 5-Pin SOT-23 Current & Power Monitors & Regulators Hi-Sd Msmnt Current Shunt Mntr Crnt Otp IC, AMP DIFF, SMD, SOT-23-5, 168 IC, CURRENT SHUNT MONITOR 800KHZ SOT23-5 60-V, High-Side, Current Output Current Shunt Monitor Current Sense Amplifier IC SOT23-5, INA168, INA168NA/250, Texas Instruments 单 电流分流监控器, 5针 SOT-23封装 |
| 分类 |
商业参数
| 产品 | Current Monitors | 其他名称 | INA168NACT |
| 产品类别 | Current & Power Monitors & Regulators | 标准包装数量 | Cut Tape, Tape & Reel |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423300 | 零件状态 | :168 |
| 抗辐射加固 | No | ||
电气参数
| 增益 | :100dB | 精度 | ±0.5% |
| 输出类型 | No | 输入功率 | Single |
| 额定电压 | 2.7 V | 共模抑制比、电源抑制比（典型） | 100dB |
| 输出电流 | 25 uA | 供电电压 | 2.7 V |
| 供电类型 | Single | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 2000 nA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 2.7 V ~ 60 V | 增益带宽积 | :800kHz |
| 最小供电电压 | 36 V | 静态电流 (Iq) | 0.06 |
| 供电电压 (Vcc/Vdd) | 60 | 电源电压范围（典型） | Not Required V |
| 输入失调电压（最大） | :1mV | 共模瞬态抗扰度（最小） | 60 |
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 重量 | 0.000617 oz |
| 带宽 | :800kHz | 包装方式 | Tape & Reel (TR) |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| -3dB带宽 | 0.8 | 安装样式 | SMD/SMT |
| 引脚数 | :5 | 封装形式 | 5SOT-23 |
| 冷却的封装 | SOT-23 | 材料表面处理 | :MSL 2 - 1 year |
| 包装数量 | 250 | SMALL T&R | 尺寸/外形 | 2.9 x 1.6 x 1.15mm |
| 位数 | 5 | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | Current Sense Amplifier | 系列 | INA168 |
| 产品特性 | Analog Output | 功能 | Current Monitor |
| 软件 | SBOS122D | 基本单元 | :168 |
| 放大器类型 | :Differential | 感应方式 | High-Side |
| 功能框图 | fbd_sbos122d.gif | 使用的IC/零件 | View |
