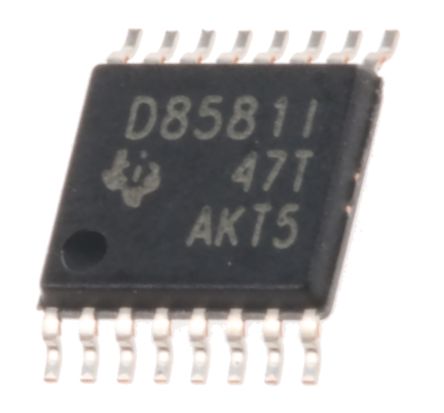

DAC8581IPW
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH Resistor-String 16-bit 16-Pin TSSOP Tube Digital to Analog Converters - DAC 16-Bit Hi-Speed Lo Noise Vltg Output IC DAC 16BIT HI-SPD LN 16-TSSOP IC, DAC 16BIT HI-SPD LN 16-TSSOP Texas Instruments , 16 位 DAC, 3Msps, SPI接口, 16针 TSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-18312-5 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 90 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 抗辐射加固 | No | ||
电气参数
| 接口 | Serial (3-Wire, SPI) | 信噪比 | 115 dB |
| 满量程 | 3 %FSR | 输入类型 | :Serial |
| 分辨率 | 16 Bit | 输出类型 | Voltage |
| INL/DNL（LSB） | ±0.1 %FSR | 输入功率 | Dual |
| 建立时间 | 0.65 us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 16 |
| 数据速率（最大） | 3 Msps | DAC数量 | 1 |
| 输出电流 | :-23mA | 供电电压 | +/- 6 V |
| 失真额定值（如THD） | 0.1 % FS | 输出数量 | 1 |
| 供电类型 | Dual | 分辨率（位） | :16bit |
| 电压基准 | External | 通道数量 | 1 |
| 采样频率 | :3MSPS | 供电电源 | Analog and Digital, Dual ± |
| 最大功耗 | 175 mW | 数字供电电压 | :1.8V to 6V |
| 输出数量与类型 | 1 Voltage, Bipolar | 采样率（每秒） | 3M |
| 电源电压范围（典型） | �5 V | ||
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.002222 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :16 |
| 封装形式 | 16TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5.1(Max) |
| 包装数量 | TSSOP | 位数 | 16 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 16-TSSOP |
产品信息
| 系列 | DAC8581 | 基本单元 | :8581 |
| 架构 | Resistor-String | 印刷电路板数量 | 16 |
| A/D转换器数量 | 1 | ||
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
