CD4066BE

点击放大查看

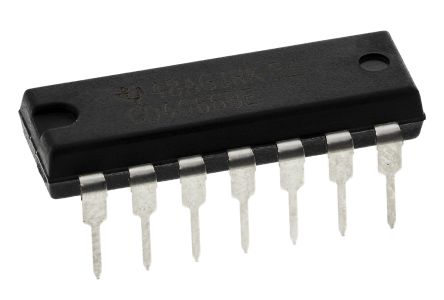

CD4066BE

制造商
Texas Instruments Incorporated
描述
Analog Switch Quad SPST 14-Pin PDIP Tube Analog Switch ICs Quad QUAD BILATERAL SWITCH 14-DIP CD4066BE, Analogue Switch Quad SPST, 5, 9, 12, 15V, 14-Pin, PDIP IC, ANALOGUE SWITCH, QUAD, 14DIP IC, ANALOG SWITCH, QUAD, SPST, DIP-14 CMOS Quad Bilateral Switch Logic IC DIL-14, HCF4066BEY, ST Texas Instruments 模拟开关, 四单刀单掷, 12 V, 15 V, 5 V, 9 V电源电压, 14针 PDIP封装
分类
集成电路嵌入式微控制器FPGA开发板
对参数有疑问？问 AI 助手

商业参数

其他名称296-2061-5产品类别Analog Switch ICs
标准包装数量Bulk, Rail / Tube工厂包装数量25
标准封装名称PDIP

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85423990
零件状态:4066抗辐射加固No
高可靠性Y

电气参数

电路1 x 1:1通道数4
串扰Yes逻辑类型:4066
输入信号Yes开启时间70@5V ns
输出信号Single Ended输入功率Single/Dual
关断延迟时间70@5V ns输入数量4
供电电压±1.5 V输出数量4
供电类型Single|Dual开关电压15 V
通道数量4击穿电压15 V
最大额定电流Military导通电阻 RDS(On):470ohm
施密特触发器输入No供电电源Dual Supply
开关功能/额定值SPST导通电阻（最大）1050@5V Ohm
电源电压范围（典型）�3/�5 V开关时间（Ton, Toff）（最大）70 ns
最大传播延迟 @ V, 最大CL15@15V|20@10V|40@5V ns多路复用/解复用电路Quad SPST

机械参数

宽度6.35mm高度4.57mm
长度19.3mm重量0.032734 oz
带宽:40MHz包装方式Tube
引脚样式Through Hole端接方式:Through Hole
安装类型Through Hole安装样式Through Hole
引脚数:14封装形式14PDIP
冷却的封装PDIP材料表面处理:-
总长度19.69(Max)包装数量PDIP
尺寸/外形19.3 x 6.35 x 4.57mm位数14
外壳尺寸-插件5.08(Max) - 0.51(Min)供应商器件封装14-PDIP

产品信息

类型Analog Switch系列CD4066B
产品特性Low Power Low Crosstalk功能:Quadruple Bilateral Switch
极性Non-Inverting软件SCHS051D
基本单元:4066开关类型Analogue
配置Quad SPST开关数量4
射频系列/标准CD4000使用的IC/零件:CD4066BE
独立电路数4印刷电路板数量14
