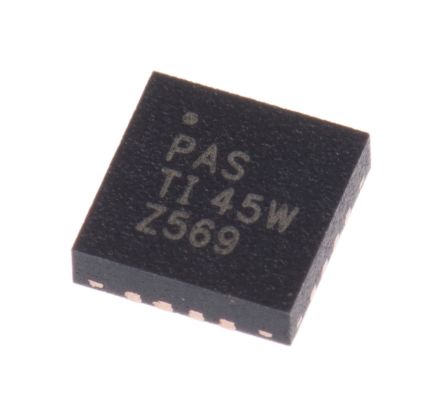

BQ24650RVAT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Battery Charge Controller Li-Ion/Li-Pol 10000mA 2.1V to 26V 16-Pin VQFN EP T/R IC SYNC SW-MODE BAT CHRGR 16VQFN Battery Management Hi Eff Synch Sw-Mode Charger Controller BATT CHARGER, SYNC, SW-MODE, 16VQFN High Efficiency Synchronous Switch-Mode Charger Controller – Solar Battery Charger Texas Instruments 铅酸，锂电池、锂离子、锂聚合物 电池充电控制器, 16针 VQFN封装 |
| 分类 |
商业参数
| 其他名称 | 296-27699-2 | 产品类别 | Battery Management |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 充电时间 | Yes | 额定电压 | 2.1 to 26 V |
| 电池节数 | >4 Cells | 输出电流 | 10000(Max) mA |
| 供电电流 | 25 mA | 供电电压 | 5 V ~ 28 V |
| 启动电压 | 3.85 V | 最大充电电流 | :10A |
| 开关频率 | 600 | 最小供电电压 | 350 mV |
| 稳压器电流（最大） | Taper Current | 主IC供电电流 | 10 |
机械参数
| 宽度 | 3.6(Max) | 重量 | 0.00027 |
| 包装方式 | Tape and Reel | 封装体颜色 | :VQFN |
| 引脚样式 | No Lead | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :16 |
| 封装形式 | 16VQFN EP | 冷却的封装 | VQFN EP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 3.6(Max) |
| 包装数量 | VQFN EP | 位数 | 16 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 16-VQFN Exposed Pad (3.5x3.5) |
产品信息
| 类型 | Battery Charge Controller | 系列 | BQ24650 |
| 产品特性 | Temp Monitoring Solar Input Over Voltage Protection | 功能 | Charge Management, Solar |
| 软件 | SLUSA75 | 基本单元 | :24650 |
| 产品子类型 | Charge Management | 图案编号 | Y |
| 电池化学类型 | Li-Ion|Li-Pol | 功能框图 | alt_slusa75.gif |
| 使用的IC/零件 | View | 控制/显示类型 | Switch-Mode |
| 印刷电路板数量 | 16 | ||
环境参数
| 测试温度 | -40 to 85 | 温度显示 | Yes |
| 工作温度 | -40 to 125 °C | ||
文档与媒体
相关型号
NE5532P
texas instruments
OP Amp Dual GP ±15V 8-Pin PDIP Tube IC OPAMP GP 10MHZ 8DIP NE5532P, Operational Amplifier 10MHz, 8-Pin PDIP OP Amp Dual GP �15V 8-Pin PDIP Tube OP AMP, DUAL LOW NOISE, 5532, DIP8 Operational amplifier; 10MHz; 5÷15VDC; Channels:2; DIP8 Dual Low-Noise High-Speed Audio Operational Amplifier Operational Amplifier Dual 10 MHz DIL-8, NE5532, NE5532P, Texas Instruments Texas Instruments 双 运算放大器, 10MHz, 8针 PDIP Operational Amplifiers - Op Amps Dual Low Noise
OPA549S
texas instruments
OP Amp Single GP ±30V/60V 11-Pin(11+Tab) PFM Tube IC OPAMP POWER 900KHZ 11PWRPACK OPA549S, Operational Amplifier 0.9MHz 9 to 28V, 11-Pin PFM Operational Amplifiers - Op Amps Hi-Vltg Hi-Current Exc Output Swing OP Amp Single GP ?30V/60V 11-Pin(11+Tab) PFM Tube High-Voltage, High-Current Op Amp, Excellent Output Swing Texas Instruments 运算放大器, 900kHz, 9 → 28 V, 11针 PFM
TPS2500DRCT
Texas Instruments
Power Switch ICs - USB Integr USB Pwr Sw w/ Boost Converter USB Power SW Lo Side Single 5.25V 0.13A to 1.4A 10-Pin VSON EP T/R IC USB PWR SW W/BOOST CONV 10SON POWER LOAD SWITCH, USB, 5.25V, SON-10 Integrated USB Power Switch with Boost Converter , USB 电源开关, 高侧，低侧, 120mΩ, 1.8 V min., 10针 VSON封装 Power Switch ICs - Power Distribution Integr USB Pwr Sw w/ Boost Converter
TPS54040DGQ
texas instruments
Conv DC-DC Single Step Down 3.5V to 42V 10-Pin HTSSOP EP Tube Conv DC-DC Single Step Down 3.5V to 42V 10-Pin HVSSOP EP Tube IC REG BUCK ADJ 0.5A 10MSOP TPS54040DGQ, Switching Regulator, Buck Controller, 500mA, Adjustable, 2500kHz, 10-Pin HTSSOP EP, MSOP Voltage Regulators - Switching Regulators 3.5V-42Vin,0.5A Step Down SWIFT Convrtr IC, STEP-DOWN CONVERTER, MSOP-10 DC-DC converter; step down; Uin:3.5÷42V; Uout:0.8÷39V; 500mA DC/DC Converter IC 0.8...39 V MSOP-10 Power PAD, TPS54040DGQ, Texas Instruments Texas Instruments 降压 开关稳压器, 500mA, 可调输出, 2500 kHz, 10针 MSOP封装 Switching Voltage Regulators 3.5V-42Vin,0.5A Step Down SWIFT Convrtr
BQ24210DQCT
texas instruments

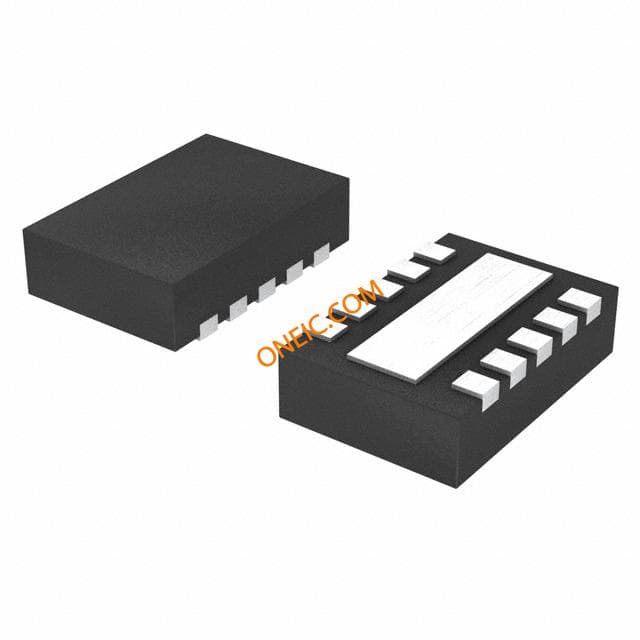

Battery Charger Li-lon 800mA 4.2V 10-Pin WSON EP T/R IC BATT CHARGER LI-ION 10WSON Li-Ion Solar Battery Charger WSON10 Battery Management 800mA,Sgl-Inp,Li-Ion Solar Batt Charger BATT CHARGER, LI-ION, 10WSON 800mA, Single-Input, Single Cell Li-Ion Solar Battery Charger Texas Instruments 锂离子 电池充电器, 1250mA最大输出, 10针 WSON封装
