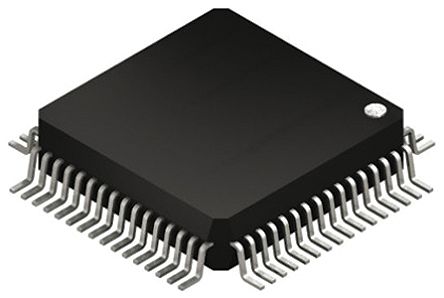

ADS8556IPM

制造商	Texas Instruments Incorporated
描述	ADC Hex SAR 630ksps 16-bit Parallel/Serial 64-Pin LQFP Tray Analog to Digital Converters - ADC 630kSPS,6Ch,Simul Sampling ADC Hex ADC SAR 630ksps 16-bit Parallel/Serial 64-Pin LQFP Tray IC ADC 16BIT 6CH 630KSPS 64LQFP ADC 16-Bit 630KSPS 6-Ch Simult. Sampling IC, ADC 16BIT 6CH 630KSPS 64LQFP 630kSPS, 6-Channels, Simultaneous Sampling Analog-to-Digital Converter Texas Instruments , 6通道 16 位 ADC, 差分输入, Parallel & Serial接口, 64针 LQFP封装
分类	集成电路数据转换器模数转换器

对参数有疑问？问 AI 助手

商业参数

其他名称	296-24972	产品类别	Analog to Digital Converters - ADC
标准包装数量	Trays	工厂包装数量	160
标准封装名称	QFP

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423290
零件状态	ACTIVE	抗辐射加固	No

电气参数

接口	Parallel\|Serial	线性度	-1LSB/2LSB
信噪比	91.5(Typ) dB	输入类型	Voltage
分辨率	16 Bit	输入信号	Single-Ended
INL/DNL（LSB）	±4LSB	输入功率	Dual
额定功率	298.5 W	转换器类型	General Purpose
数据接口	Serial, Parallel	输入极性	Bipolar
位数	16	基准类型	Ext Int
额定电压	±12V	数据速率（最大）	630 KSPs
额定电压值	�12	输出电流	:30mA
输入数量	6	供电电压	4.5 V to 5.5 V
供电类型	Dual, Single	分辨率（位）	:16bit
电压基准	2.5 V	通道数量	6
元件数量	6	采样频率	630 ksps
模拟输入/输出	5.5	最大额定电流	Catalog
ADC/DAC 数量	6	供电电源	Dual
平均正向功率	335	最大功耗	251.7 mW
差分非线性	-1/2LSB	数字供电电压	:2.7V to 3.6V, 4.5V to 5.5V
内部供电电压	:4.5V to 5.5V	采样率（每秒）	450k, 630k
差分 - 输入:输出	No	电源电压范围（典型）	�10/5 V
信噪比，ADC/DAC（dB）典型值	91.5 dB	共模瞬态抗扰度（最小）	Industrial

机械参数

宽度	10.2mm	高度	1.45mm
长度	10.2mm	重量	0.0035
包装方式	Tray	引脚样式	Gull-wing
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:64
封装形式	64LQFP	冷却的封装	LQFP
材料表面处理	:MSL 3 - 168 hours	总长度	10.2(Max)
包装数量	LQFP	尺寸/外形	10.2 x 10.2 x 1.45mm
位数	64	外壳尺寸-插件	1.45(Max)
供应商器件封装	64-LQFP (10x10)

产品信息

系列	ADS8556	已删除	Compliant
软件	SBAS404B	基本单元	:8556
架构	SAR	功能框图	fbd_sbas404b.gif
使用的IC/零件	View	印刷电路板数量	64
A/D转换器数量	6	输入数量及类型	6 Single-Ended, Bipolar

环境参数

测试温度

-40 to 125

工作温度

+ 125 C

文档与媒体
