ADS8365IPAGG4

制造商	Texas Instruments Incorporated
描述	ADC Hex SAR 250ksps 16-bit Parallel 64-Pin TQFP Tray Hex ADC SAR 250ksps 16-bit Parallel 64-Pin TQFP Tray IC ADC 16BIT 250KSPS 6CH 64-TQFP ADC 16-Bit 6-Ch 250kSPS Simult. Sampling Analog to Digital Converters - ADC 16B 250kSPS 6Ch Simu Sampling SAR ADC IC, 16BIT ADC, 6CH SAR, SMD, TQFP64 16-Bit 250kSPS 6-Ch Simultaneous Sampling SAR ADC
分类	集成电路数据转换器模数转换器

对参数有疑问？问 AI 助手

商业参数

产品类别	Analog to Digital Converters - ADC	标准包装数量	Rail / Tube, Trays
工厂包装数量	160	标准封装名称	QFP

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423990
零件状态	ACTIVE	抗辐射加固	No

电气参数

接口	Parallel	线性度	�1.5LSB(Typ)
信噪比	88(Typ) dB	输入类型	Voltage
分辨率	16 Bit	输入信号	Single-Ended\|Differential
INL/DNL（LSB）	±8LSB	输入功率	Single
额定功率	241 W	转换器类型	General Purpose
数据接口	Parallel	输入极性	Bipolar
位数	16	基准类型	Ext Int
稳压器类型	:ADC	额定电压	±2.5V
数据速率（最大）	250 KSPs	额定电压值	�2.5
输出电流	:40mA	输入数量	6
供电电压	5 V	供电类型	Single
分辨率（位）	:16bit	电压基准	Internal\|External
通道数量	6 Channel	元件数量	6
采样频率	250 ksps	最大额定电流	Catalog
ADC/DAC 数量	6	供电电源	Single
上升/下降时间（典型）	:100µs	最大功耗	241 mW
差分非线性	±1.5LSB(Typ)	数字供电电压	:2.7V to 3.6V, 4.5V to 5.5V
内部供电电压	:4.75V to 5.25V	采样率（每秒）	250k
差分 - 输入:输出	Yes	电源电压范围（典型）	Not Required V
信噪比，ADC/DAC（dB）典型值	88 dB

机械参数

宽度	10.2mm	高度	1.05mm
长度	10.2mm	重量	0.009690 oz
包装方式	Tray	引脚样式	Gull-wing
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:64
封装形式	64TQFP	冷却的封装	TQFP
材料表面处理	:MSL 4 - 72 hours	总长度	10.2(Max)
包装数量	TQFP	尺寸/外形	10.2 x 10.2 x 1.05mm
位数	64	外壳尺寸-插件	1.05(Max)
供应商器件封装	64-TQFP (10x10)

产品信息

系列	ADS8365	软件	SBAS362C
基本单元	:8365	架构	SAR
功能框图	fbd_sbas362c.gif	使用的IC/零件	View
印刷电路板数量	64	A/D转换器数量	6
输入数量及类型	12 Single-Ended, Bipolar; 6 Differential, Bipolar

环境参数

测试温度

-40 to 85

工作温度

-40°C ~ 85°C

文档与媒体

PDF 文档

PDF 文档

PDF 文档

在线文档

在线文档

相关型号

INA114BP

texas instruments

SP Amp INSTR Amp Single ±18V 8-Pin PDIP Tube IC OPAMP INSTR 1MHZ 8DIP Instrumentation Amplifiers Precision Instrumentation Amp SP Amp INSTR Amp Single �18V 8-Pin PDIP Tube IC, AMP INSTRUMENTATION, PDIP8, 114 Operational amplifier; 1MHz; 2.25÷18VDC; Channels:1; DIP8 Precision Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 1MHz, 115dB CMRR 8针 PDIP封装

¥54.3600

详情

OPA627BP

texas instruments

OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP GP 16MHZ 8DIP OP Amp Single GP �18V 8-Pin PDIP Tube OP AMP, DIFET PRECISION, PDIP8, 627 Operational amplifier; 16MHz; 4.5÷18VDC; Channels:1; DIP8 Precision High-Speed Difet(R) Operational Amplifiers Texas Instruments 运算放大器, 16MHz, 8针 PDIP High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

¥181.2000

详情

PGA204BU

texas instruments

SP Amp INSTR Amp Single ±18V 16-Pin SOIC Tube IC OPAMP INSTR 1MHZ 16SOIC PGA204BU, Instrumention Amplifier, 80dB CMRR, 16-Pin SOIC SP Amp INSTR Amp Single �18V 16-Pin SOIC Tube AMP INSTRUMENT PROG GAIN, SOIC16 Programmable Gain Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 80dB CMRR 16针 SOIC封装 Instrumentation Amplifiers Programmable Gain Instrum Amp

¥117.7800

详情

INA118P

texas instruments

SP Amp INSTR Amp Single ±18V 8-Pin PDIP Tube IC OPAMP INSTR 800KHZ 8DIP INA118P, Instrumention Amplifier, 73dB CMRR, 8-Pin PDIP Instrumentation Amplifiers Precision Low Power Instrumentation Amp SP Amp INSTR Amp Single �18V 8-Pin PDIP Tube AMP, INSTRUMENTATION, 800KHZ, PDIP8 Operational amplifier; 800kHz; 1.35÷18VDC; Channels:1; DIP8 Precision, Low Power Instrumentation Amplifier Instrumentation Amplifier DIL-8, INA118, INA118P, Texas Instruments Texas Instruments 仪表放大器, 125μV偏置, 800kHz, 73dB CMRR 8针 PDIP封装

¥45.3000

详情

MSP430FG4619IPZ

texas instruments

MCU 16-bit MSP430 RISC 120KB Flash 2.5V/3.3V 100-Pin LQFP Tray IC MCU 16BIT 120KB FLASH 100LQFP 16-bit Microcontrollers - MCU 16-Bit 120KB Flash 4KB RAM MCU 16-bit MSP430 MSP430 RISC 120KB Flash 2.5V/3.3V 100-Pin LQFP Tray MCU, 16BIT, 120K FLASH, 8K RAM, LQFP100 16-Bit Ultra-Low-Power MCU, 120KB Flash, 4KB RAM, 12-Bit ADC, Dual DAC, DMA, 3 OPAMP, 160 Seg LCD

¥60.7920

详情

TMS320F2812PGFA

texas instruments

DSP Fixed-Point 32-Bit 150MHz 150MIPS 176-Pin LQFP IC MCU 32BIT 256KB FLASH 176LQFP TMS320F2812PGFA, 32bit Digital Signal Processor 150MHz 256kb Flash EEPROM, 36kb RAM, 176-Pin LQFP IC, DSP 150 MHZ, SMD 32-Bit Digital Signal Controller with Flash Microprocessor LQFP-176, TMS320 F2812, TMS320F2812PGFA, Texas Instruments Texas Instruments 32bit 数字信号处理器 DSP, 150MHz, 256 kB ROM 闪存 EEPROM, 36 kB RAM, 176针 LQFP封装 Digital Signal Processors & Controllers - DSP, DSC 32-Bit Digital Sig Controller w/Flash

¥120.2920

详情

OPA4340UA

texas instruments

OP Amp Quad GP R-R I/O 5.5V 14-Pin SOIC Tube IC OPAMP GP 5.5MHZ RRO 14SOIC Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail Operational amplifier; 5.5MHz; 2.5÷5.5VDC; Channels:4; SO14 Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier(TM) Series Operational Amplifier Quad 5.5 MHz SO-14, OPA4340UA, Texas Instruments Texas Instruments 四路运算放大器, 5.5MHz CMOS、轨至轨, 3 V 5 V, 14针 SOIC

¥18.1200

详情

ISO124P

texas instruments

SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP ISO124P, Isolation Amplifier, 8-Pin PDIP Isolation Amplifiers Precision Low Cost Isolation Amp SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube IC, AMP ISOLATION, PDIP16, 124 Operational amplifier; 50kHz; 4.5÷18VDC; Channels:1; DIP16 Precision Lowest Cost Isolation Amplifier Isolation Amplifier DIL-16, ISO124, ISO124P, Texas Instruments Texas Instruments 隔离放大器, 8引脚 PDIP封装

¥90.6000

详情

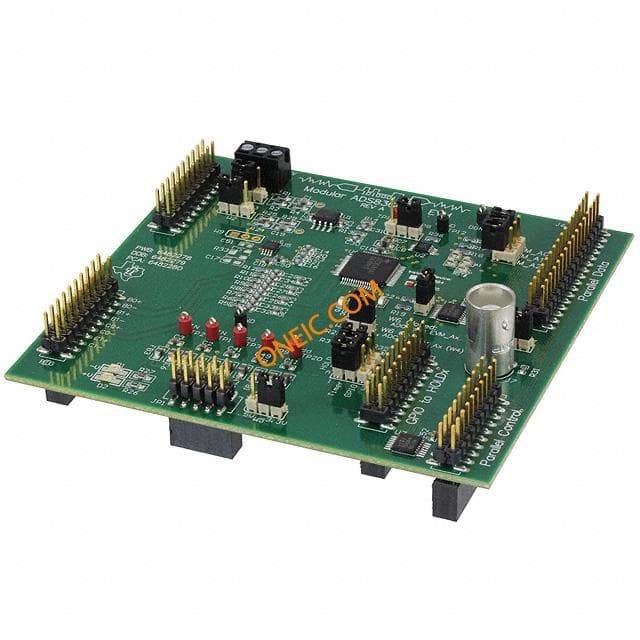

ADS8365M-EVM
