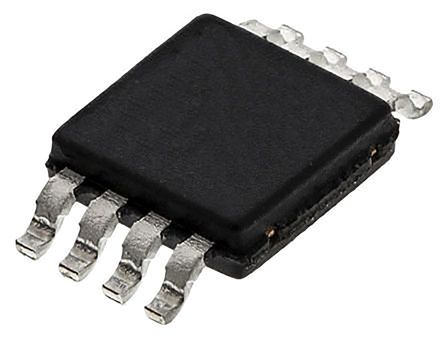

ADS8325IBDGKT
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R Analog to Digital Converters - ADC 16-Bit 100kSPS Serial Out Single ADC SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC MICRPWR SMPL 16BIT 8VSSOP ADS8325IBDGKT, 16-Bit Analogue to Digital Converter, Differential, SPI, 8-Pin MSOP, VSSOP IC, 16BIT ADC, 100KSPS, SMD, MSOP8 16-Bit, 100kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC A/D converter IC 16 Bit MSOP-8, ADS8325, ADS8325IBDGKT, Texas Instruments Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装 |
| 分类 |
商业参数
| 其他名称 | ADS8325IBDGKTTR | 产品类别 | Analog to Digital Converters - ADC |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (SPI) | 线性度 | �2LSB |
| 信噪比 | -91(Typ) dB | 输入类型 | Voltage |
| 分辨率 | 16 Bit | 输入信号 | Single-Ended|Differential |
| INL/DNL（LSB） | ±4LSB | 输入功率 | Single |
| 额定功率 | 7.5 W | 转换器类型 | General Purpose |
| 数据接口 | Serial, SPI™ | 输入极性 | Unipolar |
| 位数 | 16 | 基准类型 | Ext |
| 额定电压 | 2.5V/5V | 数据速率（最大） | 100 KSPs |
| 额定电压值 | 2.5/5 | 输出电流 | :900µA |
| 输入数量 | 1 | 供电电压 | 2.7 V to 5.5 V |
| 分辨率（位） | :16bit | 电压基准 | External |
| 通道数量 | 1 | 元件数量 | 1 |
| 采样频率 | 100 ksps | 模拟输入/输出 | 5.5 |
| 最大额定电流 | Catalog | ADC/DAC 数量 | 1 |
| 供电电源 | Single | 上升/下降时间（典型） | :-00µs |
| 平均正向功率 | 2.25 | 最大功耗 | 7.5 mW |
| 差分非线性 | ±2LSB | 数字供电电压 | :2.7V to 3.6V, 4.5V to 5.5V |
| 内部供电电压 | :2.7V to 3.6V, 4.5V to 5.5V | 采样率（每秒） | 100k |
| 差分 - 输入:输出 | Yes | 电源电压范围（典型） | Not Required V |
| 信噪比，ADC/DAC（dB）典型值 | - 91 dB | ||
机械参数
| 宽度 | 3mm | 高度 | 0.97mm |
| 长度 | 3mm | 重量 | 0.000917 oz |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8VSSOP | 冷却的封装 | MSOP, VSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 3.1(Max) |
| 包装数量 | VSSOP | 尺寸/外形 | 3 x 3 x 0.97mm |
| 位数 | 8 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 8-VSSOP | ||
产品信息
| 系列 | ADS8325 | 软件 | SBAS226C |
| 基本单元 | :8325 | 架构 | SAR |
| 功能框图 | fbd_sbas226c.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | A/D转换器数量 | 1 |
| 输入数量及类型 | 2 Single-Ended, Unipolar; 1 Differential, Unipolar | ||
环境参数
| 工作温度 | + 85 C | ||
文档与媒体
相关型号
.jpg&w=3840&q=75)
PGA207UA
texas instruments
SP Amp INSTR Amp Single ±18V 16-Pin SOIC Tube IC OPAMP INSTR 5MHZ 16SOIC PGA207UA, Instrumention Amplifier, 2.5mV Offset, 75dB CMRR, 16-Pin SOIC Instrumentation Amplifiers High-Speed Prog Gain SP Amp INSTR Amp Single ?18V 16-Pin SOIC Tube AMP INSTRUMENT PROG GAIN, SOIC16 Operational amplifier; 5MHz; 4.5÷18VDC; Channels:1; SO16 High-Speed Programmable Gain Instrumentation Amplifier Instrumentation Amplifier SO-16, PGA207, PGA207UA, Texas Instruments Texas Instruments 仪表放大器, 2.5mV偏置, 75dB CMRR 16针 SOIC封装
PGA204BU
texas instruments
SP Amp INSTR Amp Single ±18V 16-Pin SOIC Tube IC OPAMP INSTR 1MHZ 16SOIC PGA204BU, Instrumention Amplifier, 80dB CMRR, 16-Pin SOIC SP Amp INSTR Amp Single �18V 16-Pin SOIC Tube AMP INSTRUMENT PROG GAIN, SOIC16 Programmable Gain Instrumentation Amplifier Texas Instruments 仪表放大器, 50μV偏置, 80dB CMRR 16针 SOIC封装 Instrumentation Amplifiers Programmable Gain Instrum Amp
PGA2311PA
texas instruments
STEREO AUDIO VOLUME CONTROL Stereo Audio Volume Control 16-Pin PDIP Rail IC 5V STEREO AUD VOL CTRL 16-DIP Audio Amplifiers +/-5V St Audio Vol Cntrl AUDIO VOLUME CONTROL, 2311, PDIP16 +/-5V Stereo Audio Volume Control 音频音量控制, 16针 PDIP封装
ADS8325IBDGKT
texas instruments
ADC Single SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R Analog to Digital Converters - ADC 16-Bit 100kSPS Serial Out Single ADC SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC MICRPWR SMPL 16BIT 8VSSOP ADS8325IBDGKT, 16-Bit Analogue to Digital Converter, Differential, SPI, 8-Pin MSOP, VSSOP IC, 16BIT ADC, 100KSPS, SMD, MSOP8 16-Bit, 100kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC A/D converter IC 16 Bit MSOP-8, ADS8325, ADS8325IBDGKT, Texas Instruments Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装
OPA827AID
texas instruments
OP Amp Single GP ±18V 8-Pin SOIC IC OPAMP JFET 22MHZ 8SOIC OPA827AID, Operational Amplifier 22MHz, 8-Pin SOIC OP Amp Single GP �18V 8-Pin SOIC IC, OP AMP, JFET, 30MHZ, LN, 8SOIC Low-Noise, High-Precision, JFET-Input Operational Amplifier Texas Instruments 运算放大器, 22MHz, 8针 SOIC Operational Amplifiers - Op Amps Lo-Noise Hi-Prec JFET Input Op Amp

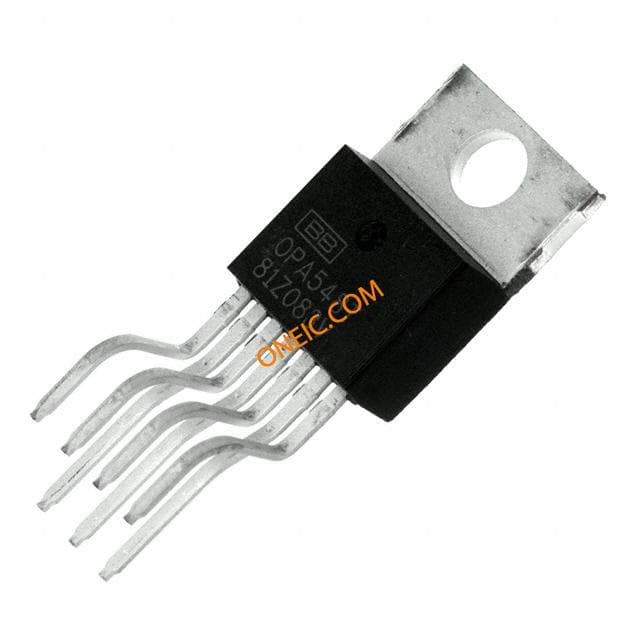

OPA548T
