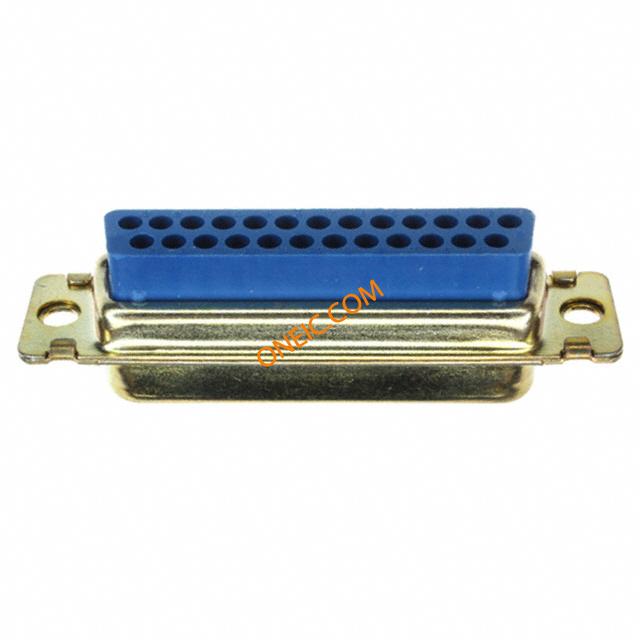

M24308/4-261Z

制造商	TE Connectivity Ltd.
描述	CONN D-SUB HOUSING PLUG 25POS
分类	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

机械参数

颜色	Blue	包装方式	Bulk
触头类型	Signal	安装类型	Free Hanging (In-Line)
连接器类型	Plug for Male Contacts	法兰特征	Housing/Shell (Unthreaded)
排数	2	连接器样式	D-Sub
介电材料	Polyester	位数	25
外壳镀层厚度	20µin (0.51µm)	外壳材料及表面处理	Steel, Yellow Chromate Plated Zinc
外壳尺寸，连接器布局	3 (DB, B)

产品信息

备注

Contacts Not Provided

相关型号

205089-4

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN 24-20 AWG AMPLIMITE - Aerospace & Military CONN PIN 20-24 AWG CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WirePinContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG HD20PINCONTACT,NON-MAG HD 20 PIN CONTACT,NON-MAG

¥3.8080

详情

205089-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN CONTACT 24-20AWG gold over copper AMPLIMITE - Aerospace & Military CONN D-SUB PIN 20-24AWG AU AMPLIMITE 109 pin contact, size 20 DM Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To WirePinContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT PIN, MASSIVE, HDP20 D SUB CONTACT, PLUG, 24-20AWG, CRIMP Connector;Pin;20-24AWG;Pin;Crimp;20;CrimpSnap-in;CopperAlloy 109 Series 24-20 AWG Crimp Snap-In Pin D-Subminiature Contact TE Connectivity AMPLIMITE 109系列尺寸20触点公压接信号 D-sub 连接器触点, 镀金镀镍触点, 24 → 20 AWG HD 20 PIN CONTACT

¥1.9380

详情

205089-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount Tape D-Sub Contacts PIN CONTACT 24-20AWG AMPLIMITE - Aerospace & Military Contact PIN Crimp ST Cable Mount Tape Product Highlights:ContactProduct Series = 109Terminate To WirePinContact Size = 20Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PIN CONTACT,SZ 20,AMPLIMITE

¥3.9440

详情
