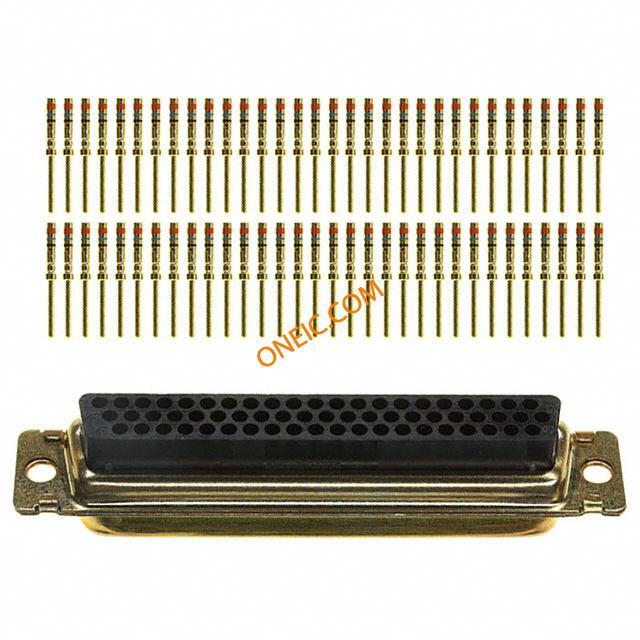

M24308/4-14
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN D-SUB PLUG HD 62POS CRIMP Conn High Density D-Sub PIN 62 POS Crimp ST Cable Mount 62 Terminal 1 Port |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 位数 | 62 |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 4 (DC, C) High Density |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
5-208875-1
te connectivity / amp
Conn D-Subminiature SKT 62 POS Solder ST Thru-Hole 62 Terminal 1 Port D-Sub High Density Connectors RECEPT ASSY 62 POSN AMPLIMITE Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT 62POS STR PCB Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To Printed Circuit BoardNumber of Positions = 62Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECEPT ASSY,62 POSN,AMPLIMITE

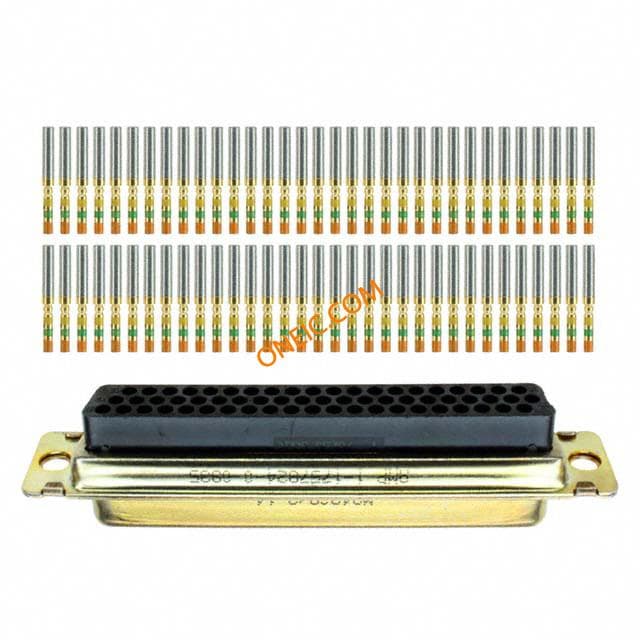

M24308/2-14
