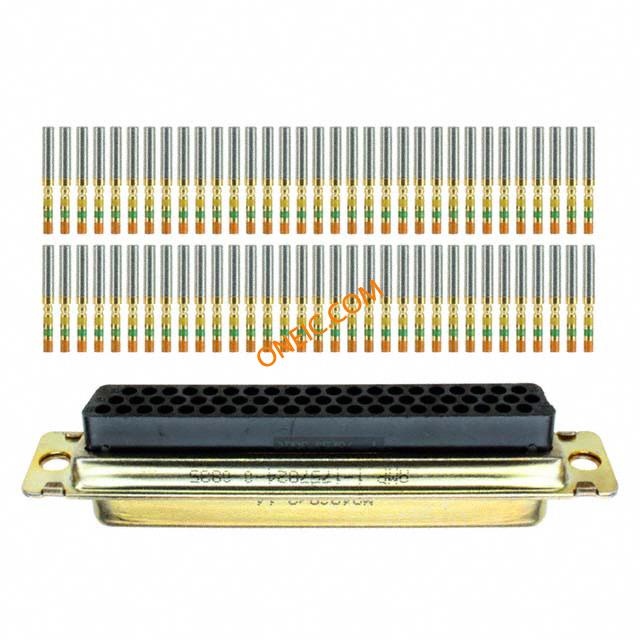

M24308/2-14
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN D-SUB RECPT HD 62POS CRIMP Conn High Density D-Sub SKT 62 POS Crimp ST Cable Mount 62 Terminal 1 Port |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 最大额定电流 | 7.5A | ||
机械参数
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 位数 | 62 |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 4 (DC, C) High Density |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
