553121-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A |
| 分类 |
商业参数
| 交货时间 | 365 Days | 子类别 | Connector Interface |
| 标准包装数量 | 540 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 材料（通用） | Thermoplastic |
| 方向 | Reverse | 屏蔽类型 | No |
| 端接方式 | Solder | 第二连接器 | Without |
| 安装类型 | No | 连接器类型 | Receptacle |
| 接触镀层 | Tin-Lead over Nickel | 法兰特征 | Hollow, Unthreaded |
| 安装样式 | Right Angle | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 面板厚度 | 3.18 [0.125] |
| 外形（宽 x 高） | Standard | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 框架材料 | Thermoplastic |
| 面板安装类型 | Rear Mount | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | EMI | 连接器性别 | Receptacle |
| 制造商全称 | AMP | 其他规格 | No |
| 适用产品/相关产品 | 5553121-2 | ||
相关型号
552443-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONTACT,CHAMP PLUG SCREW LOCK Headers & Wire Housings PLUG 24P SCREW LOCK 26-28 AWG stranded Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:Connector Classification = IDCProduct Category = ConnectorsConnector24 PositionsPlugSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

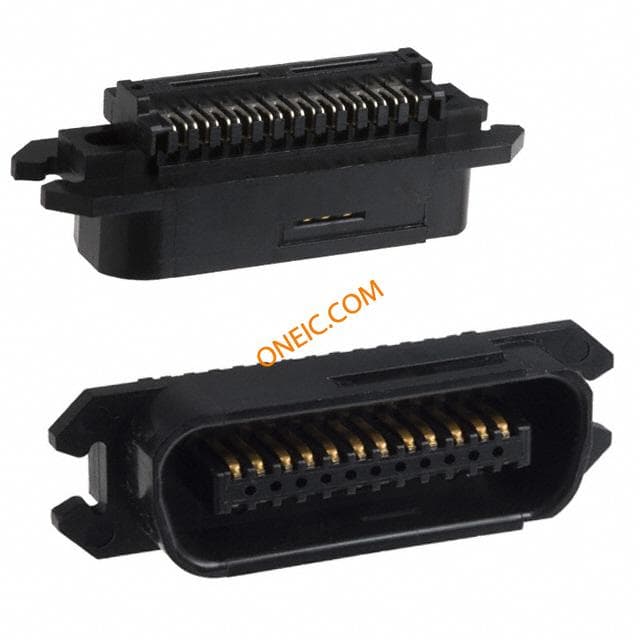

552469-1
