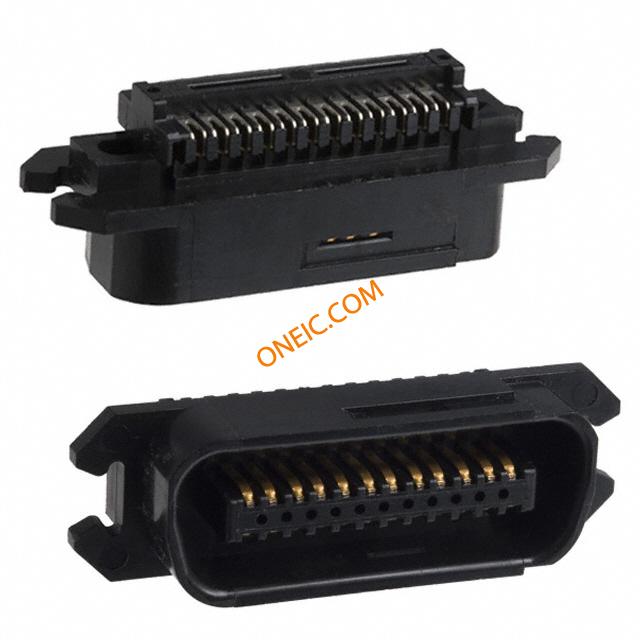

552317-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 24 POS, C SLOT I/O Connectors PLUG 24P BAIL LOCK 22AWG solid/stranded |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector Interface |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 间距 | 2.16 mm | 包装方式 | Tray |
| 厚度 | Thin | 电缆类型 | 7 Strand, Solid |
| 铜缆类型 | C | 屏蔽类型 | No |
| 端接方式 | IDC | 第二连接器 | With |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 安装样式 | Edge | 排数 | 2 |
| 连接器样式 | PB | 锁定特性 | Bail Lock |
| 外形（宽 x 高） | Standard | 包装数量 | Tray |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 触点数 | 24 | 绝缘直径 | 1.14 [.045] Max. |
| 位数 | 24 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - mm² | 0.40² [22] | ||
产品信息
| 类型 | IEEE 488 | 连接器性别 | PL |
| 产品特性 | Bail Lock | 产品子类型 | Connector |
文档与媒体
相关型号
5552791-4
te connectivity / amp
Conn IEEE 488 RCP 24 POS 2.16mm Solder RA Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A Headers & Wire Housings ASSY RCPT 24 POSN RTANG PCB 2.16 [.085] Printed Circuit Board Connectors & Cable Assemblies 2.16 [.085] Printed Circuit Board Connectors & Cable Assemblies Product Highlights:ConnectorHousing Gender = Receptacle2.16 mm CenterlineCHAMP Product Line24 PositionsSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics ASSY,RCPT,24 POSN,RTANG,PCB
229378-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool
552791-4
te connectivity / amp
Conn IEEE 488 F 24 POS Solder RA Thru-Hole 24Terminal Headers & Wire Housings ASSY,RCPT,24 POSN, RTANG,PCB 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A 2.16 [.085] Printed Circuit Board Connectors Product Highlights:ReceptacleNumber of Positions = 24PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
554088-1
te connectivity / amp
Conn SCSI RCP 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray 2.16 [.085] IDC Connectors RCPT ASSY,24 POS,PANEL MTG,LPF I/O Connectors RECPT 24P PANEL MNT low profile plastic TE Connectivity CHAMP Latch 系列 2行 24路 1.27mm节距 母 IDC 连接器 , 面板安装
2-552322-1
te connectivity / amp
Conn IEEE 488 F 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors CONN CHAMP RCPT 24POS .085 IDC 2.16 [.085] IDC Connectors Product Highlights:ConnectorNumber of Positions = 24Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
5553121-2
te connectivity / amp
Conn IEEE 488 RCP 24 POS 2.16mm Solder RA Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A Headers & Wire Housings ASSY EMI RCPT 24 POSN RTANG 2.16 [.085] Printed Circuit Board Connectors Product Highlights:ReceptacleNumber of Positions = 24PCB Mount Style = Right AngleReverse OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics ASSY, EMI RCPT, 24 POSN, RTANG
5553121-1
te connectivity / amp
Conn IEEE 488 RCP 24 POS 2.16mm Solder RA Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 24POS RT ANG Headers & Wire Housings RECPT 24P STANDARD R.A. mount EMI Conn IEEE 488 RCP 24 POS 2.16mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 24PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics ASSY, EMI RCPT, 24 POSN, RTANG
553121-1
TE Connectivity / AMP
Headers & Wire Housings RECPT 24P STANDARD 540 2.16 [.085] Printed Circuit Board Connectors CONN RECEPT CHAMP 24POS RT/A AU
553121-2
TE Connectivity
2.16 [.085] Printed Circuit Board Connectors CONN CHAMP RCPT 24POS .085 R/A
