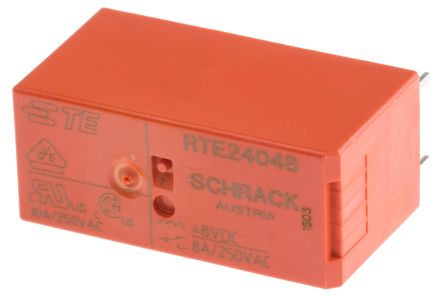

RTE24048
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 8Amps 48VDC RELAY GEN PURPOSE DPDT 8A 48V PCB Relay DPDT 8A 48Vdc wash tight Electromechanical Relay DPDT 15A 48VDC 5.52KOhm Through Hole Electromechanical Relay DPDT 15A 48VDC 5.52KOhm Through Hole Product Highlights:RT2 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 8 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB, DPCO, 48VDC PCBRelayDPDT8A48Vdcwashtight TE Connectivity 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 48V dc RTE24048 |
| 分类 |
商业参数
| 零件号别名 | 1-1393243-1 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
| 认证机构 | :CSA, VDE | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 417 mW |
| 量程（°/s） | :TE - Power PCB Relay RT2 Series | 线圈电流 | 8.7mA |
| 释放时间 | 6ms | 核心电压 | :250V |
| 线圈电阻 | 5520 Ohms | 极数 | :2 |
| 输出电流 | :8A | 供电电压 | 48 VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 4.8 VDC |
| 击穿电压 | :5kV | 必须动作电压 | :33.6V |
| 释放电压 | :4.8V | 输出浪涌功率 | 2 kVA |
| 最大触点电流 | :8A | 平均正向功率 | 400 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 33.6 VDC | 触点额定电流 | 8A |
| 供电电压 (Vcc/Vdd) | :30V | 额定交流电压（相对地/中性线） | :277V |
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.013 | 包装方式 | Tube |
| 触点形式 | 2 Form C (DPDT-BM) | 高度（最大） | :29mm |
| 引脚间距 | :5.0mm | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | PCB |
| 触头材料 | Silver Nickel | 端接样式 | PC Pin |
| 接触件端接 | Terminals | 典型触点布局 | DPDT |
产品信息
| 类型 | Power Relay | 系列 | RT2 |
| 产品特性 | Insulation - Class F, Sealed - Fully | 继电器类型 | General Purpose |
| 其他规格 | :70% | 应用细节 | Power |
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
