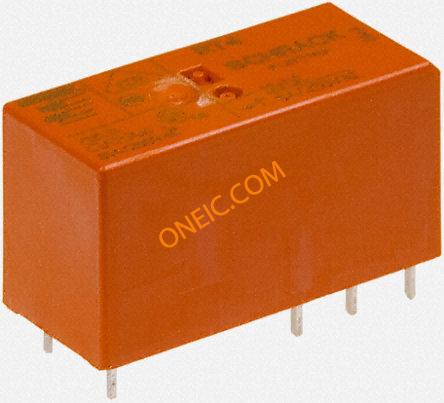

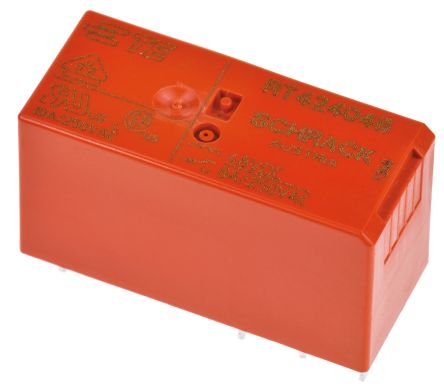

RT424048
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays PCB DPCO 48VDC RELAY GEN PURPOSE DPDT 8A 48V PCB Relay DPDT 8A 48Vdc AgNi Industrial Relays (General Purpose) Industrial Relays (General Purpose) Product Highlights:RT2 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 8 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB, DPCO, 48VDC RT424048,48VDC,2POLE,8A,5MM;7-1393243-0 PCBRELAYDPDT8A48VDC TE Connectivity 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 48V dc RT424048 |
| 分类 |
商业参数
| 标准包装规格 | 500 | 零件号别名 | 7-1393243-0 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHS |
| 海关税号 | 85364900 | 认证机构 | :BEAB, CSA, VDE |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 417 mW |
| 量程（°/s） | :TE - RT2 bistable Series | 线圈电流 | 8.7mA |
| 释放时间 | 6ms | 额定电压 | :250VAC |
| 线圈电阻 | 5520 Ohms | 极数 | :2 |
| 输出电流 | :8A | 供电电压 | 48VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 4.8 VDC |
| 击穿电压 | :5000V | 最大额定电流 | :8A |
| 输出浪涌功率 | 2 kVA | 触点电压（最大） | :250V |
| 最大触点电流 | :8A | 平均正向功率 | 400 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 33.6 VDC | 触点额定电流 | 8 A |
| 数字供电电压 | :30V | 供电电压 (Vcc/Vdd) | :30V |
| 额定交流电压（相对地/中性线） | :250V | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.03 | 包装方式 | Tube |
| 端接方式 | ThroughHole | 触点形式 | 2 Form C (DPDT-BM) |
| 高度（最大） | :15.7mm | 引脚间距 | :5mm |
| 柱间距 | :7.5mm | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | PCB |
| 引脚数 | :8 | 触头材料 | Silver Nickel |
| 端接样式 | PC Pin | 接触件端接 | Pin |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Power Relay | 系列 | RT2 |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 功能 | ACSwitching |
| 继电器类型 | General Purpose | 应用细节 | Power |
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 85°C |
