点击放大查看

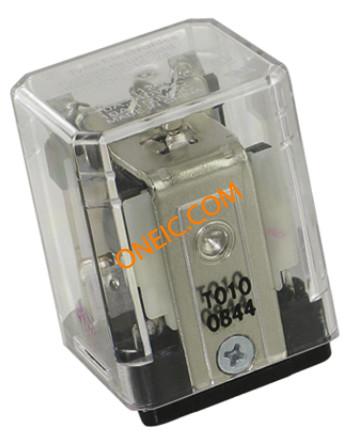

KUEP-3D15-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays SPST-NO-DM PLN 24VDC RELAY GEN PURPOSE SPST 10A 24V Relay,E-Mech,GenPurp,SPST-NO-DM,Cur-Rtg GP Relay1xSCST-NO,1xNO Bridge,10A,24Vdc Relay;E-Mech;Gen Purp;SPST-NO-DM;Cur-Rtg 10A;Ctrl-V 24DC;Vol-Rtg 150DC;9 Pin Electromechanical Relay SPST-NO-DM 10A 24VDC 472Ohm Plain Case Electromechanical Relay SPST-NO-DM 10A 24VDC 472Ohm Plain Case Product Highlights:KUEP SeriesContact Arrangement = 1 Form X, SPST-NO-DM, 1 N/O Bridge ContactContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode Relay;E-Mech;GenPurp;SPST-NO-DM;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg150DC;9Pin KUEP-3D15-24=KU- |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 1393114-1 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 零件状态 | 1393114-1 | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.25 W |
| 线圈电流 | 51 mA | 释放时间 | 10ms |
| 输入功率 | 1250 | 核心电压 | 1500 – 2500 |
| 额定电压 | 150VDC | 线圈电阻 | 472 Ohms |
| 浪涌电流 | 10 | 供电电压 | 12 V |
| 开关电压 | 150VDC - Max | 连接器阻抗 | 1 Form X（NO、桥接） |
| 开关电流 | 300 mA | 跳闸电流 | 10 |
| 最大额定电流 | 10A | 输出1频率 | 单稳态、直流 |
| 调谐电压 (VDC) | 150 | 额定电流（安培） | 5 – 10, 16 |
| 绝缘电阻 | 2200 | 直流开关电压 | 150V dc |
| 平均正向功率 | 1.2 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC |
| 触点额定电流 | 10A | 供电电压 (Vcc/Vdd) | 150 |
| 输出源/灌电流 | 300mA @ 12V | 初始电阻（最小） | 100 |
| 放电电流（最大）（8/20µs） | 10 | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
机械参数
| 深度 | 35.71mm | 宽度 | 35.7 mm |
| 高度 | 48.4 mm | 长度 | 38.9 mm |
| 重量 | 85 g [ 2.988 oz ] | 包装方式 | Tray | Box |
| 端接方式 | QuickConnect | 触点形式 | 1 Form X (SPST-NO-DM) |
| 触头类型 | 磁性熔断 | 高度（最大） | 40 – 50 |
| 致动器类型 | DC | 安装类型 | Socketable |
| 端子类型 | Quick Connect | 安装样式 | Socket |
| 引脚数 | 9 | 触头材料 | Silver Cadmium Oxide |
| 端接样式 | Plug In, QC - 0.187" (4.7mm) | 触点数 | 1 |
| 初级绕组 | UL 线圈绝缘类 B | 接触件端接 | Plug |
| 介电材料 | 2200 | 宽度/横截面 | 30 – 40 |
| 典型触点布局 | SPST-NO | 第一连接器安装类型 | 插座 |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KUEP |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KUEPSeries |
| 行业别名 | 1393114-1, KUEP-3D15-24 | 应用细节 | General Purpose |
环境参数
| 动作时间 | 15ms | 防护等级 | RTI |
| 工作温度 | -45°C ~ 70°C | 初始介电强度 | 1200 |
