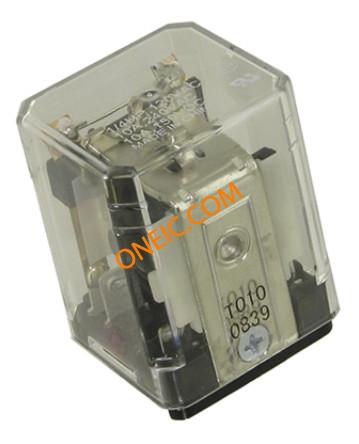

KUEP-3D15-110

点击放大查看

KUEP-3D15-110

制造商
TE Connectivity Ltd.
描述Electromechanical Relay SPST-NO-DM 10A 110VDC 10KOhm Plain Case General Purpose Relays SPST-NO-DM 10Amps GEN PURPOSE RELAY RELAY GEN PURPOSE SPST 10A 110V Relay,E-Mech,GenPurp,SPST-NO-DM,Cur-Rtg Electromechanical Relay SPST-NO-DM 10A 110VDC 10KOhm Plain Case Product Highlights:KUEP SeriesContact Arrangement = 1 Form X, SPST-NO-DM, 1 N/O Bridge ContactContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY SPST-NO 110VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;SPST-NO-DM;Cur-Rtg10A;Ctrl-V110DC;Vol-Rtg150DC;9Pin KUEP-3D15-110=KU
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间96 Days子类别Electromechanical Relay
零件号别名9-1393113-7产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量25

合规参数

RoHSRoHS Compliant标准UL,CSA,RoHS
海关税号85364110零件状态9-1393113-7

电气参数

线圈类型Monostable线圈功率1.25 W
量程（°/s）:TE - KUEP Series线圈电流11 mA
释放时间10ms额定电压28 V
线圈电阻10 KOhm输出电流:10A
供电电压110 V开关电压150VDC - Max
最大额定电流10 A最小输入电压240 V
直流开关电压150V dc平均正向功率1.2 W
集电极-发射极饱和电压（最大）@ Vge, Ic82.5 VDC触点额定电流10A
数字供电电压:300V驱动电压（最大Rds On，最小Rds On）110VDC

机械参数

宽度35.7 mm高度48.4 mm
长度38.9 mm重量0.073
包装方式Bulk端接方式QuickConnect
触点形式1 Form X (SPST-NO-DM)安装类型Plain Case
端子类型Quick Connect安装样式Socket
引脚数9触头材料Silver Cadmium Oxide
端接样式Quick Connect接触件端接Terminals
典型触点布局SPST-NO-DM

产品信息

类型Industrial Relay系列KUEP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUEPSeries
行业别名9-1393113-7, KUEP-3D15-110应用细节General Purpose

环境参数

动作时间15ms工作温度-45 to 70 °C
