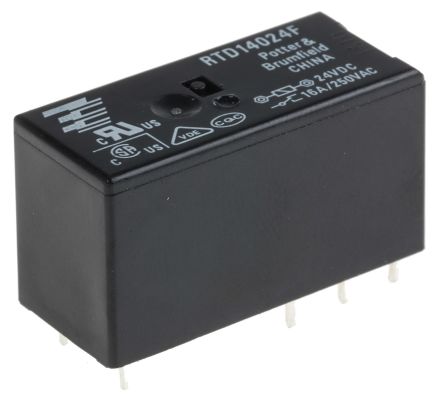

点击放大查看
RTD14024F
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay SPDT 16A 24VDC 1.44KOhm Through Hole General Purpose Relays SPDT 16A 24VDC RELAY GEN PURPOSE SPDT 16A 24V Relay,E-Mech,GenPurp,SPDT,Cur-Rtg16A Electromechanical Relay SPDT 16A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB, SPDT, 24VDC, 16A Relay;E-Mech;GenPurp;SPDT;Cur-Rtg16A;Ctrl-V24DC;Vol-Rtg250/30AC/DC;PCBMnt TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V RTD14024F |
| 分类 |
商业参数
| 零件号别名 | 3-1419108-1 | 产品类别 | General Purpose Relays |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 标准 | cULus,CSA,VDE,RoHS |
| 海关税号 | 85364900 | 零件状态 | 3-1419108-1 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 400 mW |
| 量程（°/s） | :TE - Power PCB Relay RT1 Series | 线圈电流 | 16.7 mA |
| 释放时间 | 6ms | 额定电压 | 380VAC |
| 线圈电阻 | 1.44 KOhm | 供电电压 | 24 V |
| 开关电压 | 277VAC, 30VDC - Max | Vgs(th)（最大）@ Id | 2.4 VDC |
| 最大额定电流 | 16 A | 触点电压（最大） | :277V |
| 最大触点电流 | :16A | 最小输入电压 | 400 V |
| 平均正向功率 | 400 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC |
| 触点额定电流 | 16A | 数字供电电压 | :30V |
| 供电电压 (Vcc/Vdd) | :30V | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
| 额定交流电压（相对地/中性线） | :277V | ||
机械参数
| 深度 | 0.5in | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.01 | 包装方式 | Tube |
| 端接方式 | Solder | 触点形式 | 1 Form C (SPDT-BM) |
| 高度（最大） | :15.7mm | 安装类型 | Through Hole |
| 端子类型 | Solder | 安装样式 | PCB |
| 触头材料 | Silver Nickel 90/10 | 尺寸/外形 | 1.142in.Lx0.500in.Wx0.618in.H |
| 端接样式 | PC Pin | 接触件端接 | PCB |
| 典型触点布局 | SPDT | ||
产品信息
| 类型 | Miniature Relay | 系列 | RT1 |
| 产品特性 | Insulation - Class F, Sealed - Fully | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | RTSeries |
| 应用细节 | General Purpose | ||
环境参数
| 动作时间 | 8ms | 工作温度 | -40 to 85 °C |
