点击放大查看

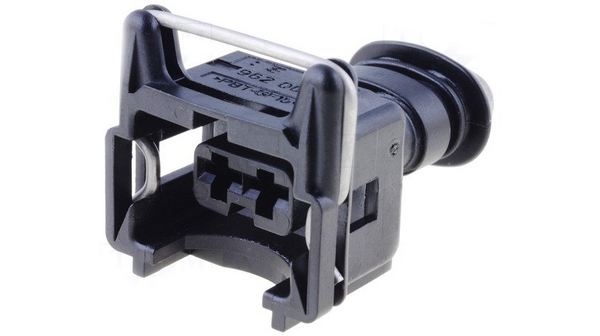

963040-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors 2P JUN-TIMER GEH Automotive Connectors 2 CT CONN SHELL Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT PIN & SOCKET HOUSING, 5MM, 2WAY Connector: automotive; JPT; plug; female; w/o terminals, sealed Junior Power Timer Housing Pitch5 mm Poles 2, 963040-3, TE Connectivity |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 35.5 mm |
| 间距 | 5 mm | 高度 | 23.6 mm |
| 密封型 | Yes | 重量 | 0.004 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 安装样式 | Wire |
| 排数 | 1 | 锁定特性 | Spring Type C |
| 壳体材料 | PBT - GF 15 | 总长度 | 5.00 [0.197] |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Sealed |
| 产品子类型 | Housing Assembly | 适配器系列 | Junior Power Timer |
| 单元数量 | 1 | 适用产品/相关产品 | :TE Connectivity JPT Connectors |
