点击放大查看

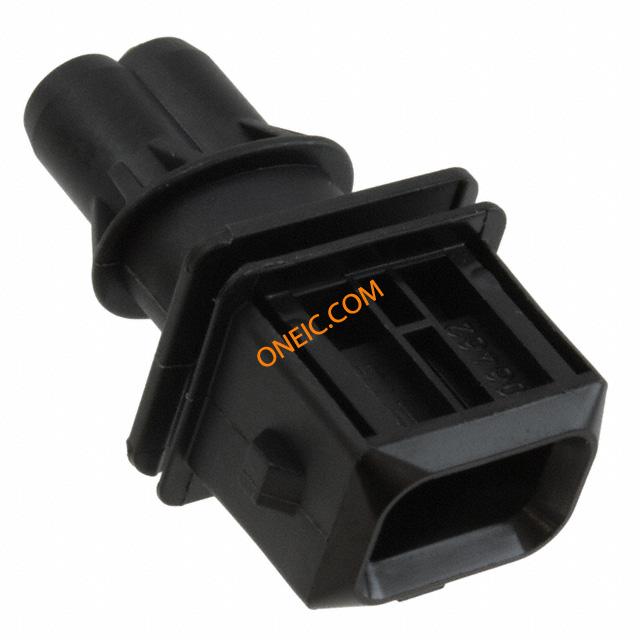

106462-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 5mm Crimp ST Headers & Wire Housings FASTIN-FASTON 2P HSG Timer - Connectors CONN TAB HSNG 2POS FASTIN-ON Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Tab HousingConnector Type = Junior Power TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 2Housing Color = BlackSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, 2.8MM, 2WAY HOUSINGCONNECTOR,2P,JPT,2.8MM 2P.FASTIN-ON HSG. |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1250 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 连接器阻抗 | 2.79 x 0.81 | ||
机械参数
| 颜色 | Black | 深度 | 36.5 mm |
| 间距 | 5 mm | 高度 | 17.2 mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 绝缘类型 | Not Insulated | 导线线规 | 4 |
| 触头类型 | Tab | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 连接器样式 | Plug | 壳体材料 | PBT - GF |
| 总长度 | 19.7 mm | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 中心触点表面处理 | 5.0 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :- |
| 已删除 | Compliant | 预加载 | No |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 适用产品/相关产品 | :TE Connectivity JPT Connectors | ||
文档与媒体
相关型号
282189-7
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM YEL Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. SPLASH PROOF CONN. W.S.L.

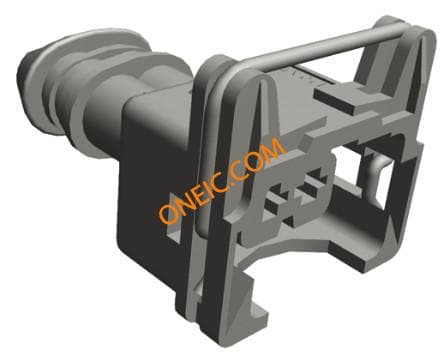

282189-2
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM GRAY Junior Power Timer 2W receptacle housing Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer2Wreceptaclehousing TE Connectivity Junior Power Timer 系列 2路 电缆安装 灰色 母 外壳 SPLASH PROOF CONN. W.S.L.
282189-5
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM BLUE Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. SPLASH PROOF CONN. W.S.L.

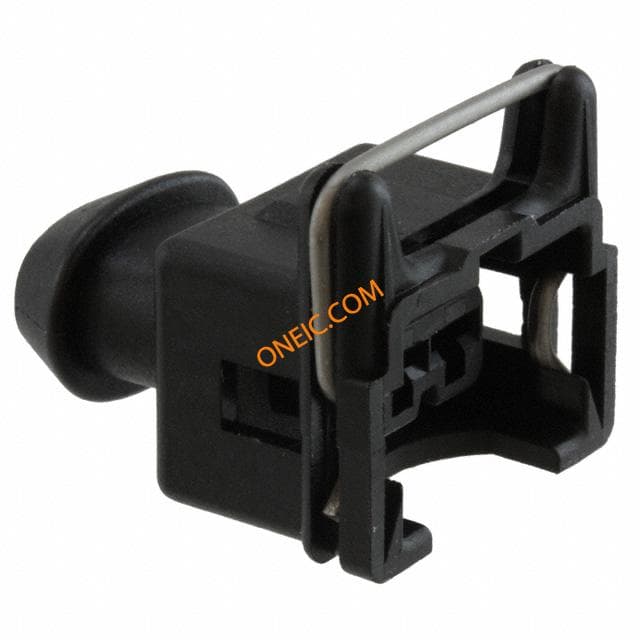

827551-3
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST JUNIOR TIMER CONNECTOR-HSG Power to the Board 2 POS TIMER HSG Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Receptacle HousingConnector Type = Junior TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, RECEPTACLE, JR TIMER, 2 WAY
963040-3
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors 2P JUN-TIMER GEH Automotive Connectors 2 CT CONN SHELL Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT PIN & SOCKET HOUSING, 5MM, 2WAY Connector: automotive; JPT; plug; female; w/o terminals, sealed Junior Power Timer Housing Pitch5 mm Poles 2, 963040-3, TE Connectivity
827551-2
te connectivity / amp
Conn Housing RCP 2 POS 5mm Crimp ST Automotive Connectors 2P MI D-FED KONTGEH CONN JR TIMER RCPT 2POS GRAY 2P MI D-FED KONTGEH

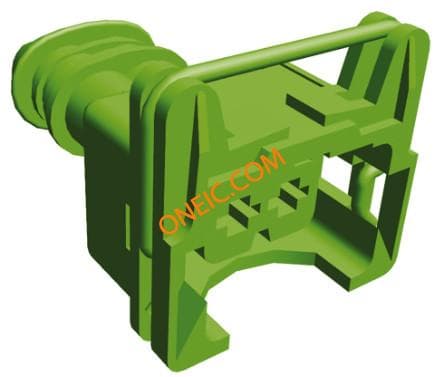

282189-4
