点击放大查看

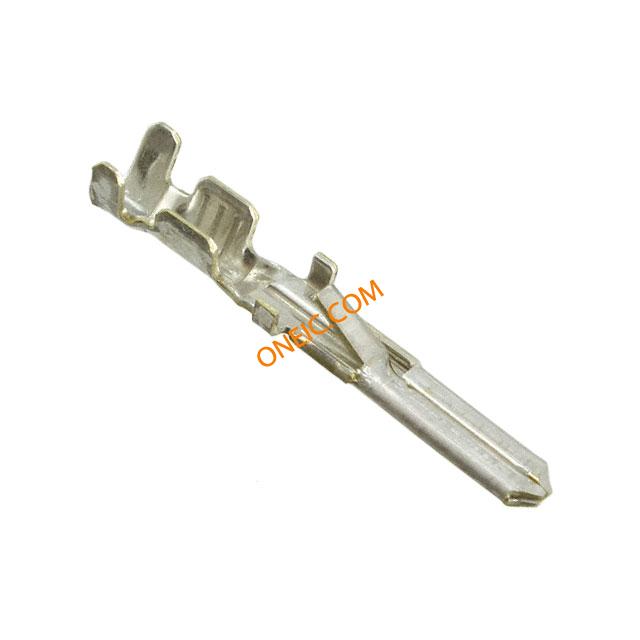

927892-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Timer Contacts CONN CONT TAB 20-17AWG .110 Terminal Tab 2.79mm 20-17AWG Fastin-on Automotive Connectors FF FLACHST MIF 2.8 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior Timer, Junior-Power-TimerTabWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.60 - 2.21 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer TERMINALTAB2.79MM TE Connectivity FASTIN-FASTON .110 系列 压接接头端子, 2.79 x 0.81mm, 镀锡触芯 |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A100855CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 间距 | Not Required mm | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 0.110" (2.79mm) | 绝缘类型 | Non-Insulated |
| 导线线规 | 17-20 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 1mm² | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 触头材料 | Copper-Zinc | 壳体材料 | Not Required |
| 总长度 | 22.5mm | 端接样式 | Crimp |
| 触点数 | 1 POS | 接触件尾部长度 | 0.81mm |
| 绝缘直径 | 0.063" ~ 0.087" (1.60mm ~ 2.21mm) | 位数 | 1 |
| 焊盘布局尺寸 | 2.79 x 0.81mm | 线规或范围 - AWG | 20-17 |
| 触点镀层厚度 - 柱 | 2.79mm | ||
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 系列 | Junior Power Timer, Junior Timer | ||
