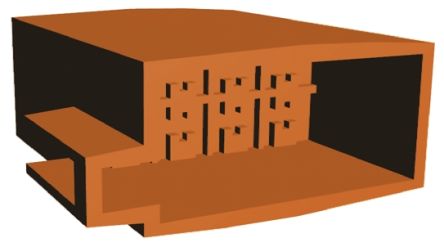

点击放大查看
106455-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS 6mm Crimp ST Cable Mount FASTIN-FASTON CONN HOUSING JUNIOR TIMER 8POS Housing 8 way Tab Fastin-Faston Automotive Connectors 8P HSNG JUNIOR TIMER Conn Housing PL 8 POS 6mm Crimp ST Cable Mount Product Highlights:Tab HousingConnector Type = Junior TimerNumber of Positions = 8Tab Fit = 2.79 x 0.81 mmPBT Housing MaterialSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT Housing8wayTabFastin-Faston TE Connectivity AMP FASTIN-FASTON 系列 8 触点 尼龙 66 压接端子外壳 FF 110 PLUG HSG 8P. |
| 分类 |
商业参数
| 其他名称 | 1064554 | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 800 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 连接器阻抗 | 2.79 x 0.81 | ||
机械参数
| 颜色 | Brown | 间距 | 6 mm |
| 长度 | 35mm | 包装方式 | Bulk |
| 排间距 | 0.197" (5.00mm) | 外壳样式 | With |
| 触头类型 | Tab | 外壳颜色 | Brown |
| 安装类型 | Straight | 连接器类型 | Housing |
| 排数 | 2 | 封装形式 | Plug Housing |
| 连接器样式 | Plug | 壳体材料 | PBT - GF |
| 包装数量 | 800 | 主要材料 | 尼龙 66 |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | 触点镀层厚度 - 柱 | 6.35mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 106455 |
| 预加载 | No | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | 5.00 x 6.00 |
| 适用产品/相关产品 | Faston Connector | ||
