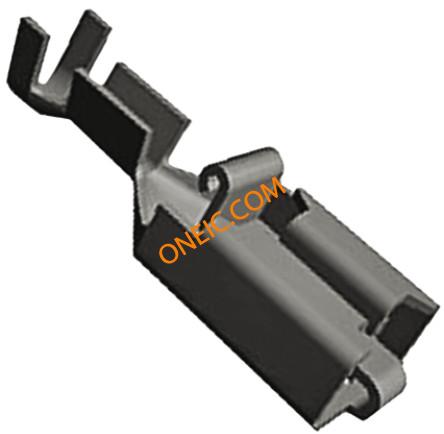

927855-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13.5-17AWG RCP 22.3mm 7.4mm Pre-Tin Loose Piece Automotive Connectors POS-LOCK STECKH 6.3 CONN SOCKET 17-13.5AWG STR CRIMP Positive lock,receptacle,17-13awg,6.35mm Quick Disconnect Terminal 13.5-17AWG RCP 22.3mm 7.4mm Pre-Tin Loose Piece Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 1.00-2.50² [17-13.5] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelock,receptacle,17-13awg,6.35mm TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL RECEPTACLE 1.0-2.5 MM2 PTP CUSN 30 |
| 分类 |
商业参数
| 产品类别 | Automotive Connectors | 标准包装数量 | 12,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 抗辐射加固 | No | ||
电气参数
| 核心类型 | Open | ||
机械参数
| 颜色 | Not Required | 深度 | 7.4 mm |
| 长度 | 25.8mm | 包装方式 | Bulk |
| 插片宽度 | 0.250" (6.35mm) | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 导线线规 | 13.5-17 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2.5mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 壳体镀层 | Pre-Tin |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 低 | 触头材料 | Brass |
| 总长度 | 0.878" (22.30mm) | 包装数量 | 500 |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 2.1 – 3.1 mm [ .083 – .122 in ] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 13AWG | 外径-未扩张 | 3.1 mm [ .122 in ] |
产品信息
| 备注 | FLKr-Wire：薄壁导线 | 连接器性别 | Female |
| 系列 | Positive Lock .250 Mk I | ||
文档与媒体
相关型号
926646-1
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Conn Housing RCP 8 POS 9.1mm Crimp ST Product Highlights:HousingHousing Type = Housing - TabTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
100100-1
te connectivity / amp
Conn Housing RCP 2 POS 6.3mm Crimp ST Positive Lock Connectors CONN RCPT 2POS W/POSITIVE LOCK Headers & Wire Housings 02P RECPT HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
520961-1
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RECEPT POS LOCK MRK I .250 Headers & Wire Housings .25 POS LOCK HSG Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, RECEPTACLE HOUSING, POSITIVE LOCK CONN CONNECTOR,PLUG,RECEPTACLE,6.35MM,1POS TE Connectivity 250 系列 1 触点 黑色 尼龙 压接端子外壳 PL 250 HOUSING BLACK NYLON
926646-3
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST CONN RCPT HSG 8POS .250 NATURAL Headers & Wire Housings 8P POS-LOCK GEH 6,3
154719-2
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive lock plug housing,1 way,6.35mm Automotive Connectors BOOT/INSULATOR F. POSLOK TERM Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RED, 1WAY Positivelockplughousing,1way,6.35mm PL 250 REC HSG 1P NYLON RED
154719-4
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 YELLOW Housing 1way Rec 6.35mm Yellow Posi-Lock Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING1WAYREC6.35MM TE Connectivity Positive Lock 系列 1 触点 尼龙 压接端子外壳 PL 250 REC HSG 1P NYLON YELLOW
1-154719-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 NATURAL Headers & Wire Housings POSILOK RECEPTACLE Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RECEPTACLE PL 250 REC HSG 1P NYLON NAT
215528-1
te connectivity / amp
Conn Housing RCP 2 POS ST Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2P.POS.LOCK HSG.250 Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 2Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
927389-2
te connectivity / amp
Conn Housing PL 3 POS Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 3POS .250 WHITE Headers & Wire Housings 3 POS. POSITIVE LOC Conn Housing PL 3 POS Crimp ST Cable Mount Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 3Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
215956-1
te connectivity / amp
Conn Housing RCP 4 POS ST Positive Lock Connectors CONN RCPT HSG 4POS .250 BLACK
927553-1
te connectivity / amp
Conn Housing PL 2 POS 9.7mm Crimp ST Cable Mount Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2 POS POSITIVE LOCK HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
4-154719-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 BLACK Positive lock plug housing,1 way,6.35mm Headers & Wire Housings POS-LOCK INS SLEEVE Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelockplughousing,1way,6.35mm TE Connectivity Positive Lock Mark I 系列 1 触点 尼龙 压接端子外壳 POSITIVE LOCK (PL) RECEPTACLE
927389-1
te connectivity / amp
Conn Housing RCP 3 POS ST Positive Lock Connectors CONN RCPT HSG 3POS .250 BLACK Headers & Wire Housings 03P.POS.LOCK HSG.
539743-2
te connectivity / amp

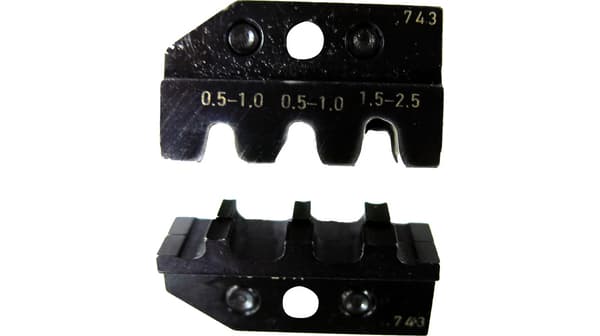

DIE F2.8FF TAB Punches & Dies DIE F2.8FF TAB TOOL DIE SET 2.8MM FF TAB Crimping dies, 539743-2, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具模具 , 0.5 → 1 mm²，1.5 mm²，2.5 mm² 线规格
