点击放大查看

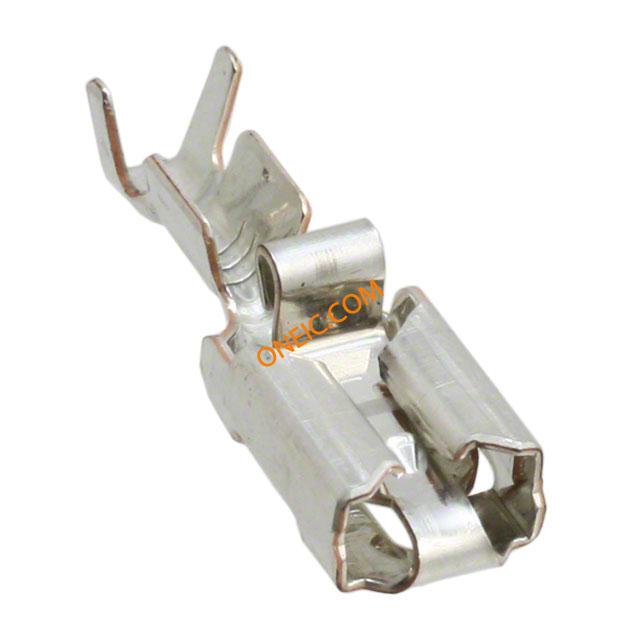

927854-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG RCP Pre-Tin Strip Automotive Connectors TAB RECEPT CONN RCPT TAB 17-13.5AWG STR Quick Disconnect Terminal 13-17AWG RCP Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 1.00-2.50² [17-13.5] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONTACT, CRIMP, RECEPTACLE, 17-13AWG Terminal: flat; 6.3mm; 0.8mm; female; 1÷2.5mm2; crimped; tinned PL 250 REC TERMINAL 17-13 AWG PTPB |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A99688CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | 1,500 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
机械参数
| 宽度 | 6.3mm | 重量 | 0.005 |
| 材料（通用） | Copper Alloy | 包装方式 | Reel |
| 插片宽度 | 0.250" (6.35mm) | 厚度 | 0.8mm |
| 绝缘类型 | Not Insulated | 导线线规 | 13.5-17 AWG |
| 方向 | straight | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Straight |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | female | 接触镀层 | Tin |
| 安装样式 | Wire | 壳体镀层 | Pre-Tin |
| 触头材料 | Brass | 套圈材料 | non-insulated |
| 总长度 | 0.878" (22.30mm) | 包装数量 | 1500 |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 接触件端接 | :Crimp | 线规或范围 - AWG | 17-13 |
| 线规或范围 - mm² | 1...2.5mm2 | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1500 | 连接器性别 | Female |
| 系列 | :- | 单元数量 | 1500 |
| 适用产品/相关产品 | :Positive Lock Connectors | ||
