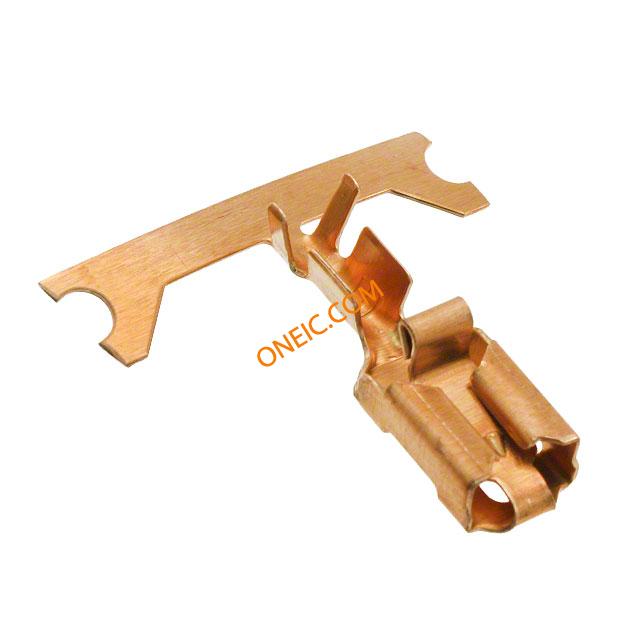

927854-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG RCP Strip Automotive Connectors TAB RECEPT CONN RCPT TAB 17-13.5AWG STR Positive lock,receptacle,17-13awg,6.35mm Quick Disconnect Terminal 13-17AWG RCP Strip Product Highlights:ContactContact Gender = ReceptacleTab Fit = 6.35 x 0.81 mmTerminate To WireLine = Mark ISearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, POSLOCK,FEM,6.35X0.81 TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.81mm PL 250 REC TERMINAL 17-13 AWG PBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A99675TR |
| 产品类别 | Automotive Connectors | 标准包装数量 | 4,500 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
电气参数
| 核心类型 | Open | ||
机械参数
| 长度 | 22.3mm | 材料（通用） | Phosphor Bronze |
| 包装方式 | Reel | 插片宽度 | 0.250" (6.35mm) |
| 电缆类型 | FLK | 绝缘类型 | Non-Insulated |
| 导线线规 | 13.5-17 AWG | 端接方式 | Crimp |
| 安装类型 | Straight | 释放力 | .7 – 10.2 |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 2.5mm² | 电缆材料 | Stranded |
| 连接器类型 | 快速断开终端, 母座 | 接触镀层 | 无镀层 |
| 安装样式 | Wire | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Phosphor Bronze |
| 总长度 | 0.878" (22.30mm) | 包装数量 | 4500 |
| 导线端接方式 | No | 端接样式 | Crimp |
| 适用端子尺寸 | 2.1 – 3.1 mm [ .083 – .122 in ] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 17-13 | 外径-未扩张 | 3.1 mm [ .122 in ] |
产品信息
| 备注 | FLKr-Wire：薄壁导线 | 类型 | Positive Lock Connectors |
| 连接器性别 | Female | 系列 | Positive Lock .250 Mk I |
| CAD图纸 | 3D CAD Model | ||
