点击放大查看

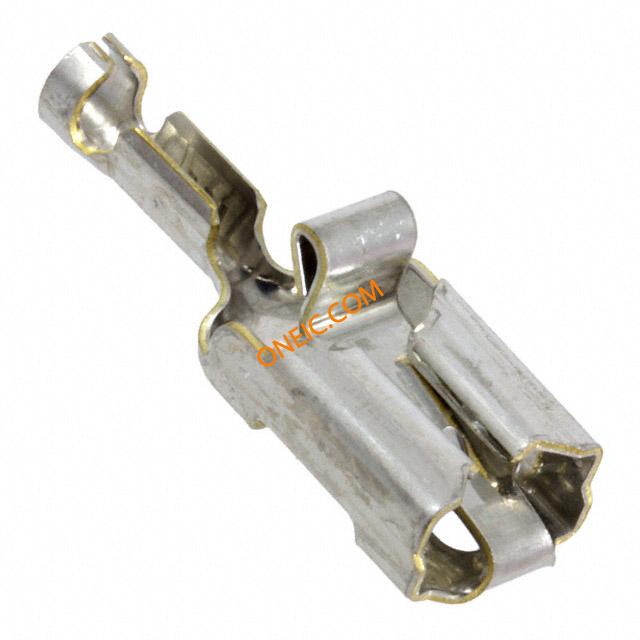

927853-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13.5-17AWG RCP 22.3mm 7.4mm Pre-Tin Loose Piece CONN POS LOCK 17-20AWG TIN Headers & Wire Housings POS-LOCK RCPT 6 3 Quick Disconnect Terminal 13.5-17AWG RCP 22.3mm 7.4mm Pre-Tin Loose Piece Product Highlights:ContactContact Gender = ReceptacleTab Fit = 6.35 x 0.81 mmTerminate To WireLine = Mark ISearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL 250 REC TERMINAL 20-17 PTPB LP |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
电气参数
| 核心类型 | Open | ||
机械参数
| 包装方式 | Bulk | 插片宽度 | 0.250" (6.35mm) |
| 电缆类型 | FLK | 绝缘类型 | Non-Insulated |
| 导线线规 | 17-20 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 释放力 | .7 – 10.2 |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | No |
| 接触镀层 | Tin | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | 0.878" (22.30mm) | 包装数量 | 500 |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 1.4 – 2.3 mm [ .055 – .091 in ] | 绝缘直径 | 0.055" ~ 0.091" (1.40mm ~ 2.31mm) |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 外径-未扩张 | 2.3 mm [ .091 in ] | ||
产品信息
| 备注 | FLKr-Wire：薄壁导线 | 连接器性别 | Female |
