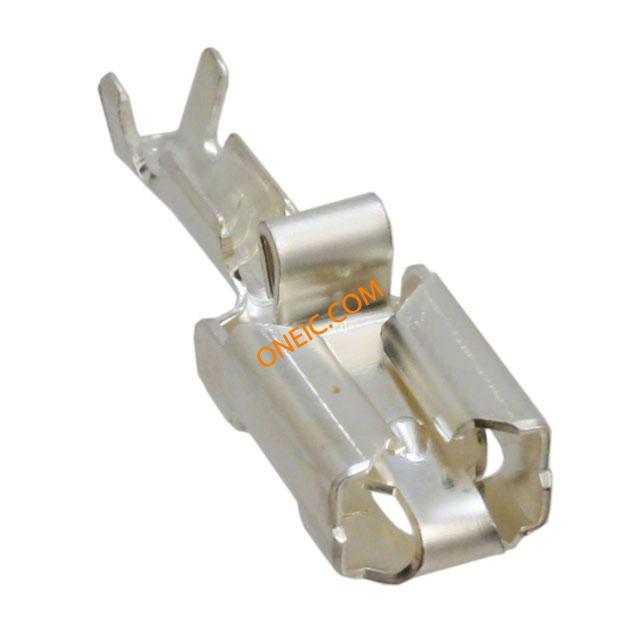

927852-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 17-20AWG RCP Pre-Tin Strip Automotive Connectors TAB RECEPT CONN RCPT TAB 20-17AWG STR .250 Positive lock,receptacle,20-17awg,6.35mm Quick Disconnect Terminal 17-20AWG RCP Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 0.50-1.00² [20-17] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL 250 REC TERMINAL 20-17 AWG PTPPB |
| 分类 |
商业参数
| 其他名称 | A99673TR | 产品类别 | Automotive Connectors |
| 标准包装数量 | 6,000 | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
电气参数
| 核心类型 | Open | ||
机械参数
| 长度 | 22.3mm | 包装方式 | Reel |
| 插片宽度 | 0.250" (6.35mm) | 电缆类型 | FLK |
| 绝缘类型 | Non-Insulated | 导线线规 | 17-20 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 释放力 | .7 – 10.2 | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 1mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 插入件材料 | 磷青铜 |
| 插入力 | 低 | 操作力 | 7 – 100 |
| 触头材料 | Phosphor Bronze | 总长度 | 0.878" (22.30mm) |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 1.4 – 2.3 mm [ .055 – .091 in ] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 17AWG | 外径-未扩张 | 2.3 mm [ .091 in ] |
产品信息
| 连接器性别 | Female | 系列 | .250 |
| CAD图纸 | 3D CAD Model | ||
环境参数
| 工作温度 | -30 – 105 °C [ -22 – 221 °F ] | ||
文档与媒体
相关型号
