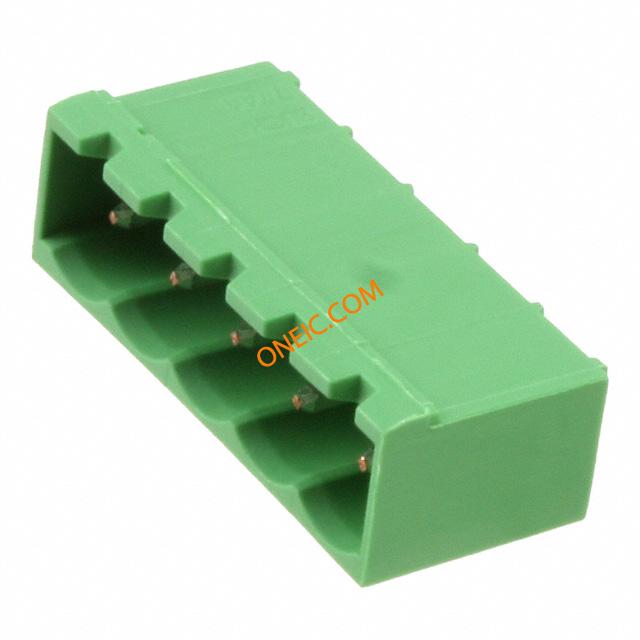

796644-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 5MM Pluggable Terminal Blocks 5.0MM RA HDR 5 PIN Conn Shrouded Header HDR 5 POS 5mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Header Shrouded 5 Position 5 mm Pitch Euro Style Terminal Block 5POS 5.0MM CE R/A HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300V |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Green | 间距 | 5 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 引脚样式 | Right Angle |
| 导线线规 | 30 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 否 |
| 安装类型 | Through Hole | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 150 | 排针方向 | 90°, Right Angle |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
| 每层极数 | 5 | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | 第二连接器安装特性 | 90°, Right Angle |
