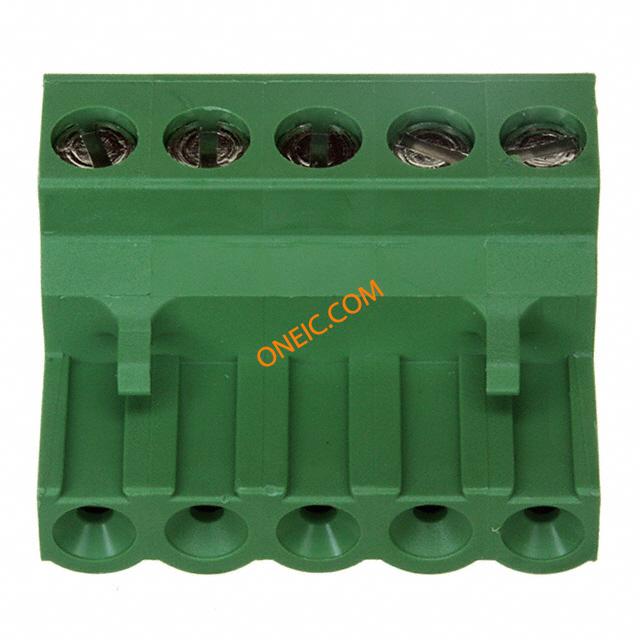

796640-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 5 POS 5mm Screw RA Cable Mount 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 5POS STR 5MM Pluggable Terminal Blocks 5.0MM RA PLUG 5P Conn Terminal Block F 5 POS 5mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 30-12AWG, 5WAY Conn.;TerminalBlock;Plug;TwoPiece;RightAngle;5Pos.;5.00mmPitch 5 POS 5.0 MM R/A PLUG,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL94V-0 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 极数 | 5Poles |
| 供电电压 | 300 | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 间距 | 5 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 遮蔽类型 | No | 引脚样式 | Side |
| 螺钉尺寸 | M3 | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Tin | 法兰特征 | Without |
| 排数 | 1 | 螺丝材料 | Brass |
| 插头进线方向 | 180° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide 6.6 | 总长度 | 5.00 [0.197] |
| 主要材料 | PCB | 插针孔直径 | 0.197(5)In.(mm) |
| 连接器间距 | Side | 端接样式 | Through Hole |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Plug, Female Sockets | 进线位置 | Front |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 0.03 â 2.50 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Terminal Block | 级别 | SingleLevel |
| 连接器性别 | F | 系列 | :- |
| 产品特性 | Retention Latches (Non-Wire Side) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 互连系统 | Without |
| 每层位数 | 5 | ||
