796638-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 7 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 7POS R/A 5.08MM Pluggable Terminal Blocks 5.08MM RA HDR 7P Terminal Block Connectors Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 7POS 5.08MM CE R/A HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 100 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 否 |
| 安装类型 | Through Hole | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 100 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 7 |
| 位数 | 7 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | 接触镀层厚度 | 6 – 7 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 层数 | 1 | 互连系统 | 不带 |
| 每层位数 | 7 | 并排堆叠 | 否 |
文档与媒体
相关型号
282928-5
te connectivity / amp
Connector Accessories Label Terminal Block Connectors TERM BLOCK ADH LABEL 10POS 41-50
796634-7
te connectivity / amp

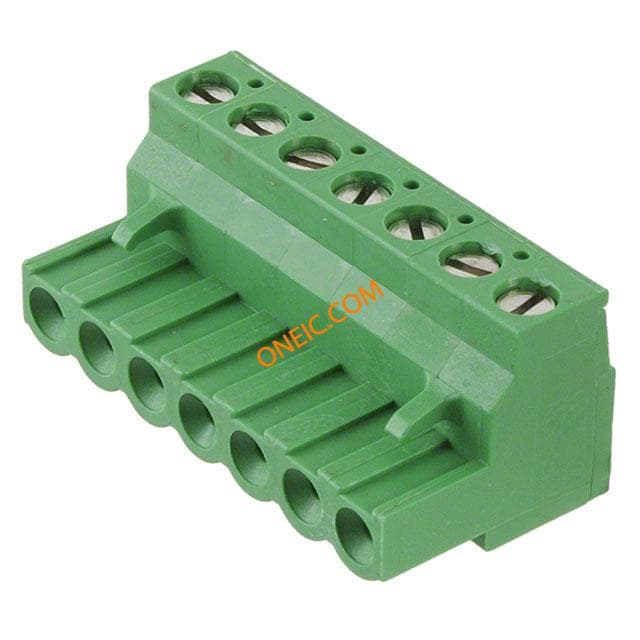

Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 7POS STR 5.08MM Non-Fused Terminal Block Cable Mount 7 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 7P Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugHousing Color = GreenNot StackedWithout Threaded FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 30-12AWG, 7WAY 7WRISINGCLAMPTERMINAL TE Connectivity 7 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 7 POS 5.08MM R/A PLUG,TRM BLK
