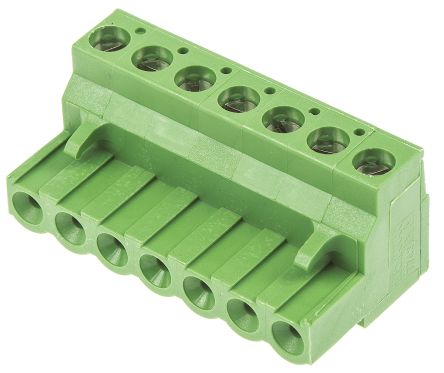

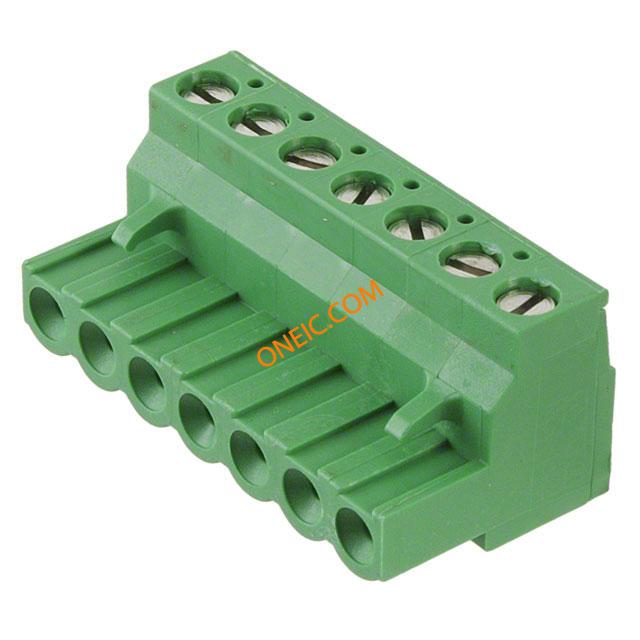

796634-7

点击放大查看

796634-7

制造商
TE Connectivity Ltd.
描述Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 7POS STR 5.08MM Non-Fused Terminal Block Cable Mount 7 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 7P Conn Terminal Block F 7 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugHousing Color = GreenNot StackedWithout Threaded FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 30-12AWG, 7WAY 7WRISINGCLAMPTERMINAL TE Connectivity 7 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 7 POS 5.08MM R/A PLUG,TRM BLK
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Pluggable Terminal Blocks产品类别Pluggable Terminal Blocks
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压300 V ac最大额定电流15A

机械参数

颜色Green间距5.08 mm
重量0.02材料（通用）Nylon
包装方式Bulk引脚样式Side
导线线规12-30 AWG端接方式Screw
外壳颜色Green安装类型Cable Mount
连接器类型:Pluggable Terminal Block接触镀层Tin
排数1插头进线方向180°
触头材料Phosphor Bronze壳体材料Polyamide (PA)
触点数7位数7
接线端子类型Plug, Female Sockets线规或范围 - AWG30-12
线规或范围 - mm²12第一连接器安装类型:Cable
每排/每行位置数7

产品信息

类型Terminal Block连接器性别F
系列:BUCHANAN产品特性Retention Latches (Non-Wire Side)
层数1每层位数7

文档与媒体

在线文档
796634-7?RQPN=796634-7
