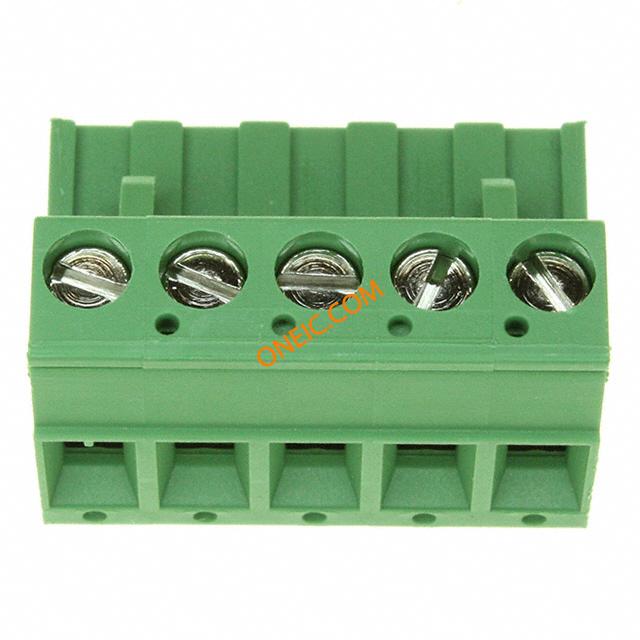

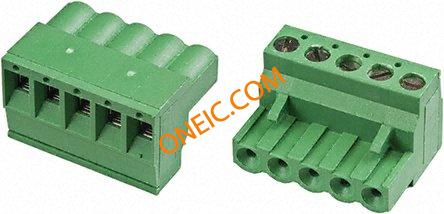

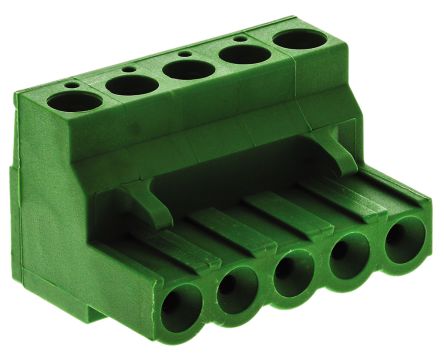

796634-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 5 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 5POS STR 5.08MM TE Connectivity Eurostyle Series 5.08mm Pitch 5 Way 1 Row Right Angle PCB Header, Screw Down Termination, 15A Pluggable Terminal Blocks 5.08MM RA PLUG 5P Conn Terminal Block F 5 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorHousing Color = GreenNot StackedWithout Threaded FlangeWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PLUG, TERMINAL BLOCK, 5.08MM, 5WAY Conn;TermBlk;Plug;5;5.08mm;30-12AWG;Green;15A;300V;RightAngleMount Pluggable terminal block; plug; female; 5.08mm; ways:5; 15A; green sale TE Connectivity Buchanan 系列 5.08mm节距 5路 (1排) 直角 印刷电路板接线端子块, 螺钉拧紧端接, 15A 5 POS 5.08MM R/A PLUG,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 认证机构 | ULRecognized |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V ac | 极数 | 5Poles |
| 最大额定电流 | 15A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 18.4 mm |
| 间距 | 5.08 mm | 高度 | 15.5 mm |
| 长度 | 25.4mm | 重量 | 0.009 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 引脚样式 | Side | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 柱间距 | 5.08mm |
| 基体材料 | polyamide | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | :Eurostyle Terminal Block |
| 接触镀层 | Tin | 安装样式 | Cable |
| 排数 | 1 | 插头进线方向 | 180° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 25.4 mm | 包装数量 | 150 |
| 主要材料 | PCB | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 插针孔直径 | 0.2(5.08)In.(mm) |
| 连接器颜色 | green | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Plug, Female Sockets |
| 进线位置 | Front | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 150 | 类型 | Terminal Block |
| 级别 | SingleLevel | 连接器性别 | F |
| 系列 | Eurostyle | 产品特性 | Retention Latches (Non-Wire Side) |
| 制造商全称 | Buchanan | 单元数量 | 1 |
| 层数 | 1 | 每层位数 | 5 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
