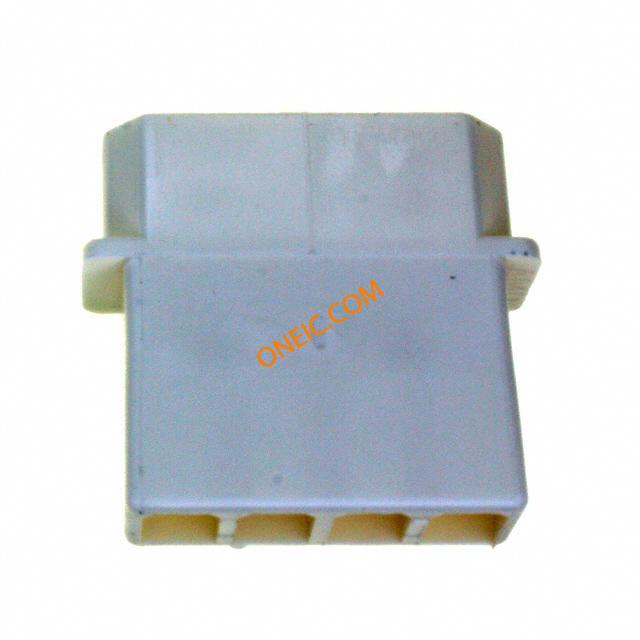

794132-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 5.08mm ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 4POS MATE-N-LOK Power to the Board 4P CMNL CAP HSG Conn Housing RCP 4 POS 5.08mm ST Individual Product Highlights:ConnectorNot PreloadedHousing Gender = ReceptacleAccepts Contact Gender = PinIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON MATE-N-LOKHOUSING,04PCMNLCAPHSG TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 公 电缆安装 PCB 连接器外壳 04P CMNL CAP HSG |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 19 A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 23.62 mm |
| 间距 | 5.08 mm | 高度 | 8.38 mm |
| 重量 | 0.002 | 锁定类型 | Detent Lock |
| 包装方式 | Bulk | 导线线规 | 14-30 AWG |
| 触头类型 | Male Pin | 基体材料 | :Nylon |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Pre Tin |
| 紧固类型 | Friction Lock | 安装样式 | Panel Mount, Free Hanging |
| 排数 | 1 | 封装形式 | Receptacle (Cap) |
| 线缆终端 | :Free Hanging | 壳体材料 | Nylon |
| 总长度 | 25.65 mm | 包装数量 | One Piece Housing |
| 主要材料 | InterconnectSystem | 端接样式 | Wire |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 中心触点材料 | 5.08 [.200] | 典型触点布局 | In-Line |
| 接触镀层厚度 | 2.13 [0.084] | ||
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :Commercial MATE-N-LOK |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 电路数 | 4 | 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
