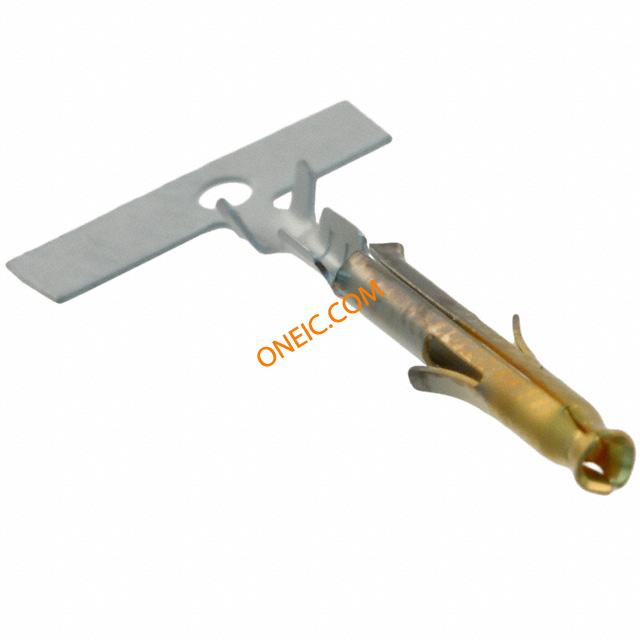

794058-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Power to the Board SOCKET CONTACT 10000 Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 26-30 AWG |
| 插针或插孔 | Socket | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Quick Connect |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 30-26 |
产品信息
| 类型 | Stamped | 产品子类型 | Contacts |
