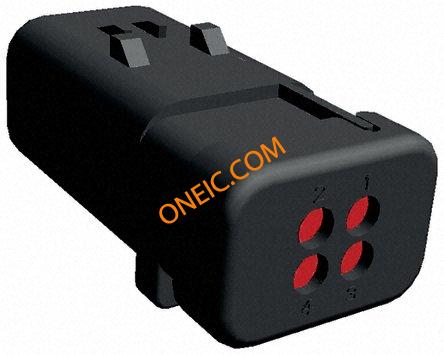

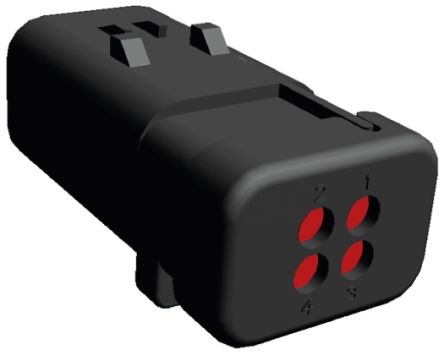

776488-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 4.5mm Crimp ST AMPSEAL CONN CAP ASSY 4POS 14-18AWG RED Ampseal 16 4 way receptacle housing Automotive Connectors RECPT 4 POS RED 18-14 AWG Conn Housing RCP 4 POS 4.5mm Crimp ST Product Highlights:Plug AssemblyNumber of Positions = 4Terminate To WireWith GasketColor = Red PLUG AND SOCKET CONNECTOR HOUSING CONNECTOR,AMPSEAL16,CAPASSEMBLY,4POSITION,14-18AWG,RED As 16, 4P Cap Assembly, Key 1 RoHS TE Connectivity AMPSEAL 16 系列 2行 4路 夹安装 红色 公 外壳 AS 16, 4P CAP ASSY, KEY 1 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Red | 深度 | 47.55mm |
| 间距 | 4.5 mm | 宽度 | 24.6mm |
| 高度 | 22.45mm | 重量 | 0.00001 |
| 材料（通用） | Thermoplastic | 包装方式 | Bulk |
| 导线线规 | 18-14 | 排间距 | 0.209" (5.30mm) |
| 触头类型 | Male Pin | 安装类型 | Straight |
| 连接器类型 | Crimp | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Thermoplastic Glass Reinforced | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 连接器颜色 | Red |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 衬套/护套类型 | With |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Ampseal 16 Sealed |
| 产品特性 | HousingOnly,Submersible | 成分 | –1 |
| 制造商全称 | AMPSEAL16 | 产品子类型 | Plug Assembly |
| 连接类型 | Wire | 适用产品/相关产品 | :AMPSEAL 16 Connectors |
文档与媒体
相关型号
776524-1
te connectivity / amp
