点击放大查看

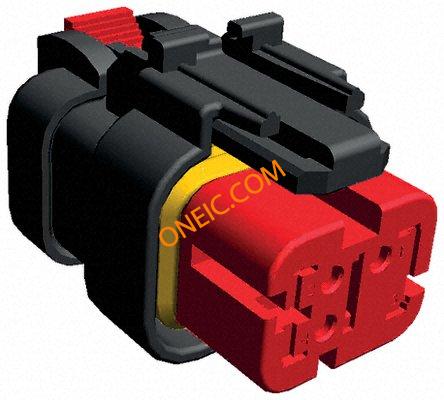

776487-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 4.5mm Crimp ST Cable Mount AMPSEAL CONN PLUG ASSY 4POS 14-18AWG RED Ampseal 16 4 way plug housing, 2 row Automotive Connectors HSG REC 2X02C F/H RED Conn Housing PL 4 POS 4.5mm Crimp ST Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 4Terminate To WireWith GasketColor = Red PLUG AND SOCKET CONNECTOR HOUSING CONNECTOR,AMPSEAL16,PLUGASSEMBLY,4POSITION,14-18AWG,RED As 16, 2P Cap Assembly, Key 1 RoHS TE Connectivity AMPSEAL 16 系列 2行 4路 电缆安装 红色 母 外壳 AS 16, 4P PLUG ASSY, KEY 1 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 22 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not reviewed for lead free solder process | RoHS/ELV合规状态 | ELV compliant |
机械参数
| 颜色 | Red | 深度 | 39.95mm |
| 间距 | 4.5 mm | 宽度 | 25.33mm |
| 高度 | 26.8mm | 重量 | 0.00001 |
| 材料（通用） | Thermoplastic | 包装方式 | Bulk |
| 导线线规 | 18-14 | 排间距 | 0.209" (5.30mm) |
| 触头类型 | Female Socket | 外壳颜色 | Red |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Thermoplastic Glass Reinforced |
| 主要材料 | InterconnectSystem | 连接器颜色 | Red |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 衬套/护套类型 | With |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :AMPSEAL |
| 产品特性 | HousingOnly,Submersible | 成分 | –1 |
| 制造商全称 | AMPSEAL16 | 产品子类型 | Receptacle Assembly |
| 连接类型 | Wire | 适用产品/相关产品 | :AMPSEAL 16 Connectors |
相关型号

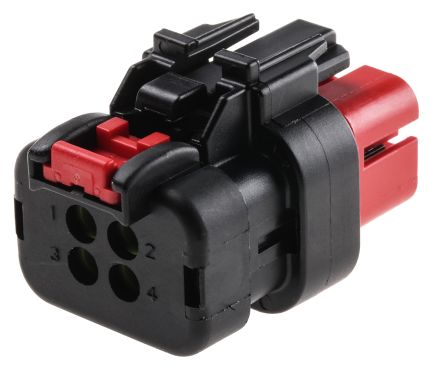

776488-1
