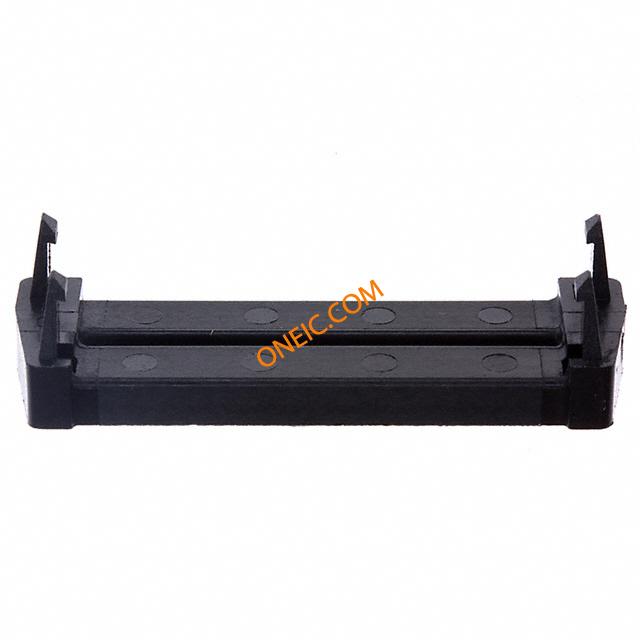

747275-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | 025 LP HDF STRAIN RELIEF Connector Accessories Strain Relief 25 POS Thermoplastic Black D-Sub Tools & Hardware CABLE STRESS RLF 25P Standard Cable Connectors CONN D-SUB STRAIN RELIEF 25POS AMPLIMITE HDF-20 strain relief, 25 way Connector Accessories Strain Relief 25 POS Thermoplastic Black Product Highlights:AccessoryAccessory Type = Strain ReliefProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25Wire/Cable Type = Ribbon CableSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub STRAIN RELIEF, 25WAY D-SubStrainRelief;Thermoplastic;Ribbon;3;Black;25;AMP/HDF-20 Strain relief 25P, 747275-2, TE Connectivity TE Connectivity 应力消除夹, 使用于HDF20 系列 |
| 分类 |
商业参数
| 产品 | Accessories | 产品类别 | D-Sub Tools & Hardware |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 颜色 | Black | 深度 | 12.59 mm |
| 高度 | 4.72 mm | 重量 | 0.002 |
| 材料（通用） | Thermoplastic | 包装方式 | Bulk |
| 出线方向 | 90° | 电缆类型 | Ribbon Cable |
| 外壳尺寸 | 3 | 总长度 | 41.22 mm |
| 位数 | 25 | 绝缘材料 - 材质 | :Thermoplastic |
产品信息
| 类型 | Strain Relief | 等级 | Standard |
| 系列 | HDF-20 (Ribbon Cable) | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Accessory |
| 附件类型 | Strain Relief | 射频系列/标准 | 747275 |
| 适用产品/相关产品 | HDF-20 Series | ||
