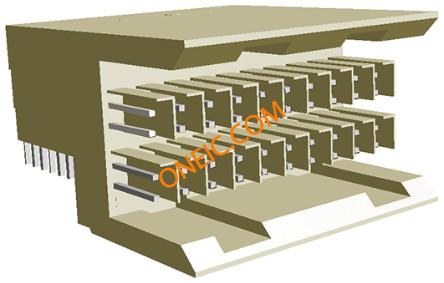

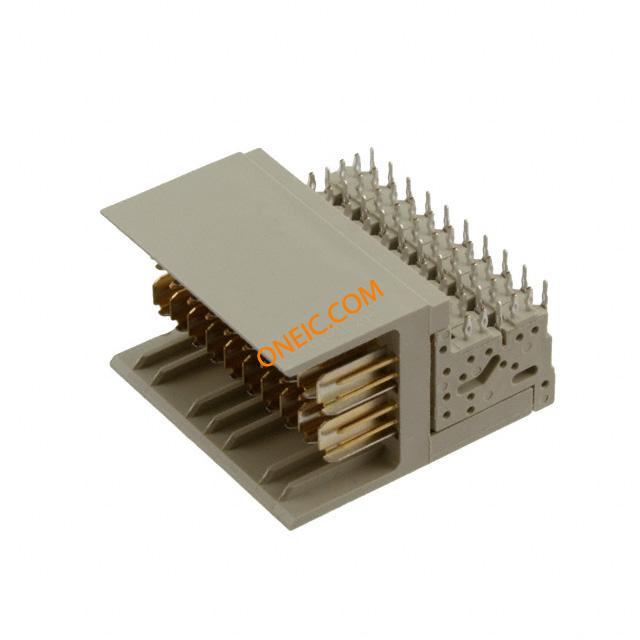

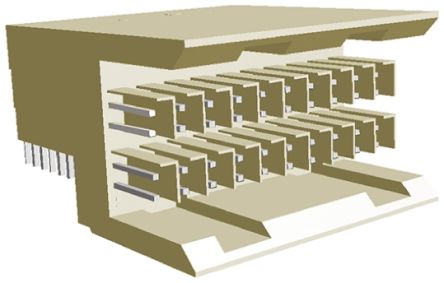

6469169-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn High Speed HDR 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 40POS R/A HM-ZD TIN TE Connectivity Z-PACK Series 2.5mm Pitch 40 Way 4 Row Right Angle PCB Header, Solder Termination, 0.7A Hard Metric Connectors HDR 4X010P R/A B-PLANE HMZD Conn High Speed HDR 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER, HM-ZD, THT, VERTICAL, 40WAY HMZDPINHDR2PR,HMZD2PRRAHDR40PASSYLF 40 Position 2.5 mm Header Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 公 背板连接器, 焊接端子, 7A HMZD 2PR RA HDR 40P ASSY LF |
| 分类 |
商业参数
| 其他名称 | 64691691 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 接触电阻 | 50 mohm | 最大额定电流 | 0.700A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 25.55 mm | 间距 | 2.5 mm |
| 高度 | 15.48 mm | 重量 | 0.05 |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 柱间距 | :1.5mm |
| 安装类型 | Through Hole | 电缆间距 | 20.3 [0.8] |
| 连接器类型 | Header, Male Pins and Blades | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 4 |
| 连接器样式 | High Speed | 连接器用途 | Backplane |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Copper-Nickel-Silicon |
| 壳体材料 | Polyester GF | 总长度 | 24.90 [0.980] |
| 端接样式 | Press In | 连接器颜色 | 20 |
| 触点数 | 40 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Right Angle | 位数 | 2 |
| 柱体长度（配合） | 2.20 [0.087] | 典型触点布局 | 40 Signal, 20 Ground |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | High Speed | 连接器性别 | HDR |
| 系列 | Z-PACK | 带定序器 | No |
| 制造商全称 | AMP | 产品子类型 | Header |
| 列数 | 10 | 选择性装载 | No |
| 加载位置数 | All | 转换前位置数 | 10 |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
