6469028-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN RCPT 40POS DUAL R/A HM-ZD Hard Metric Connectors REC 4X010P R/A B-PLANE HMZD Conn Hard Metric RCP 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:ReceptacleConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd CONNECTOR, FEMALE, 40WAY HEADER,HM-ZD,40POS,10COLUMN,ACTIONPINPOST,2.20MM,PCB 40 Position 2.5 mm Receptacle Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 母 背板连接器, 按式端子, 7A HM-ZD 2PR RECP 40P |
| 分类 |
商业参数
| 其他名称 | 64690281 | 零件号别名 | 512-6920 |
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 最大额定电流 | 0.700A | 最小供电电压 | 250VAC |
机械参数
| 深度 | 19.9 mm | 间距 | 2.5 mm |
| 高度 | 13.35 mm | 重量 | 0.002 |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 引脚间距 | :2mm |
| 柱间距 | :2mm | 安装类型 | Through Hole |
| 电缆间距 | 20.3 [0.8] | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 4 | 连接器样式 | High Speed |
| 连接器用途 | Daughtercard | 屏蔽材料 | Phosphor bronze |
| 触头材料 | Copper-Nickel-Silicon | 壳体材料 | Polyester GF |
| 总长度 | 24.90 [0.980] | 端接样式 | Press Fit |
| 连接器颜色 | 20 | 触点数 | 40 |
| 端接表面处理 | Tin over Nickel | 接触件端接 | :Press Fit Vertical |
| 位数 | 2 | 典型触点布局 | 40 Signal, 20 Ground |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 连接器性别 | RCP |
| 系列 | Z-Pack HM-ZD | 制造商全称 | AMP |
| 产品子类型 | Receptacle | 列数 | 10 |
| 选择性装载 | No | 加载位置数 | All |
| 转换前位置数 | 10 | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号
6469076-1
te connectivity / amp
Conn Hard Metric HDR 40 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories HM-ZD 2PR HDR ASSY 1.8MM Hard Metric Connectors HM-ZD 2PR HDR ASSY 1.8MM Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories Product Highlights:20.3 mm Card Slot PitchHeaderPCB Mount Angle = VerticalPairs per Column = 2Columns per Connector = 10Search Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd

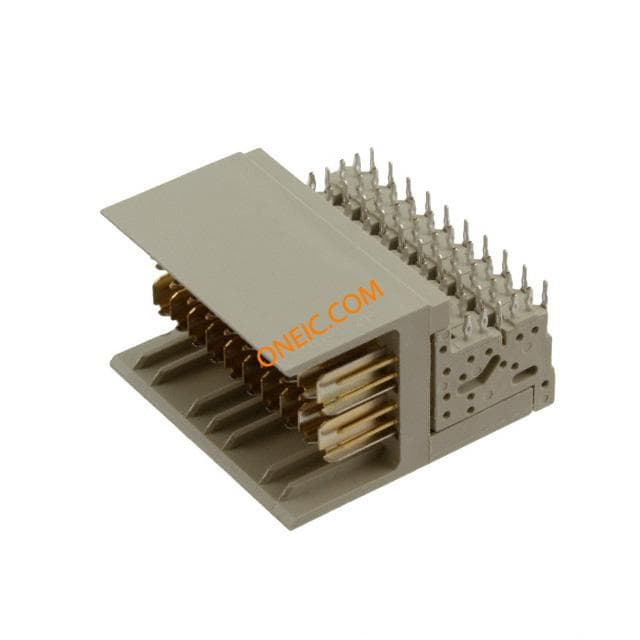

6469169-1
te connectivity / amp
Conn High Speed HDR 40 POS 2.5mm Press Fit RA Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 40POS R/A HM-ZD TIN TE Connectivity Z-PACK Series 2.5mm Pitch 40 Way 4 Row Right Angle PCB Header, Solder Termination, 0.7A Hard Metric Connectors HDR 4X010P R/A B-PLANE HMZD Conn High Speed HDR 40 POS 2.5mm Press Fit RA Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.20 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER, HM-ZD, THT, VERTICAL, 40WAY HMZDPINHDR2PR,HMZD2PRRAHDR40PASSYLF 40 Position 2.5 mm Header Right Angle Through Hole Z-PACK HM-Zd Connector TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 40 路 直角 4 排 公 背板连接器, 焊接端子, 7A HMZD 2PR RA HDR 40P ASSY LF

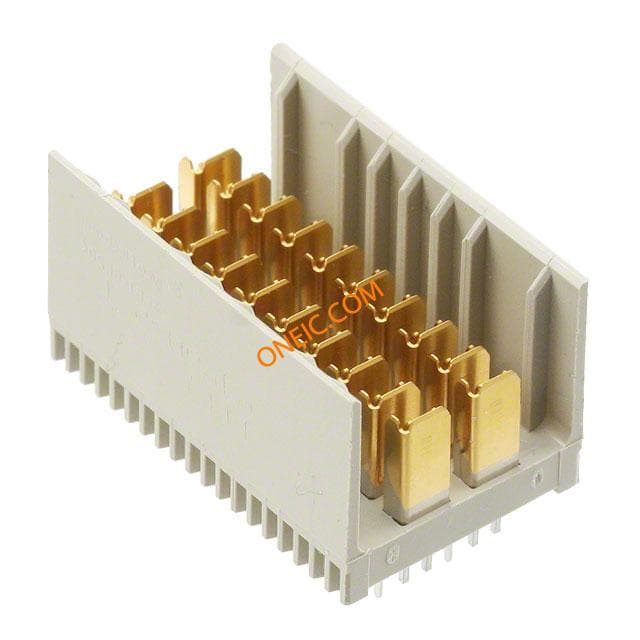

6469025-1
