643067-8

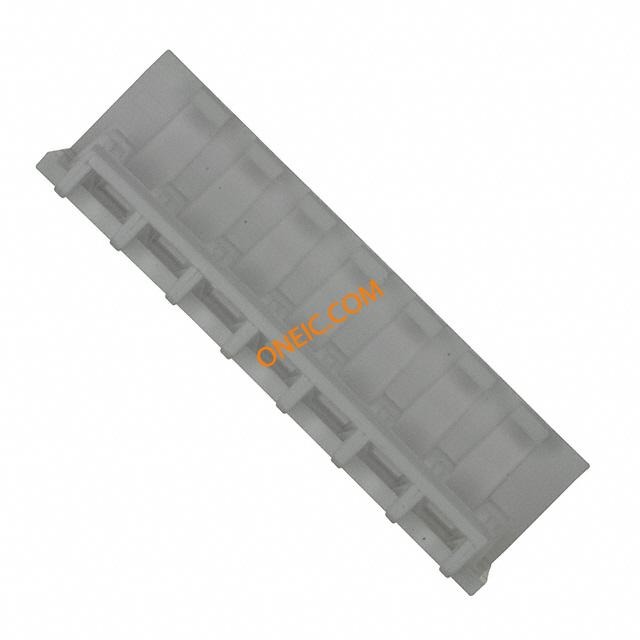

点击放大查看

643067-8

制造商
TE Connectivity Ltd.
描述Connector Accessories 8 POS Strain Relief Closed End Cover Nylon White MTA, CST and SL Accessories CONN STRAIN RELIEF COVER 8POS 8w closed end strain relief cover Headers & Wire Housings STRAIN RLF COVER 8P Closed End Connector Accessories 8 POS Strain Relief Closed End Cover Nylon White Product Highlights:AccessoryAccessory Type = Strain Relief CoversWithout Panel AttachmentCover Style = Closed End8 PositionsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP DustCover,ClosedEnd;MTA-156Connectors;Nylon;8;ClosedEnd;AMP TE Connectivity 应力释放支架 08P MTA156 MOLDED COVER
分类
集成电路逻辑IC扫描测试逻辑IC
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量250

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

机械参数

颜色White深度11.18 mm
间距3.96 mm [ .156 in ]高度8.51 mm
排数1本体材料Nylon
壳体材料Nylon总长度31.7 mm
包装数量500面板安装类型Without
主要材料Interconnect触点数8
绝缘直径2.41 [0.095]位数8
兼容外壳尺寸（如TM-700等）MTA-156 连接器

产品信息

类型Cover样式Closed End
系列MTA-156产品特性Closed End
CAD图纸3D CAD Model制造商全称AMP
产品子类型Strain Relief Covers附件类型Cap (Cover), Strain Relief
射频系列/标准643067适用产品/相关产品MTA-156 Connectors
