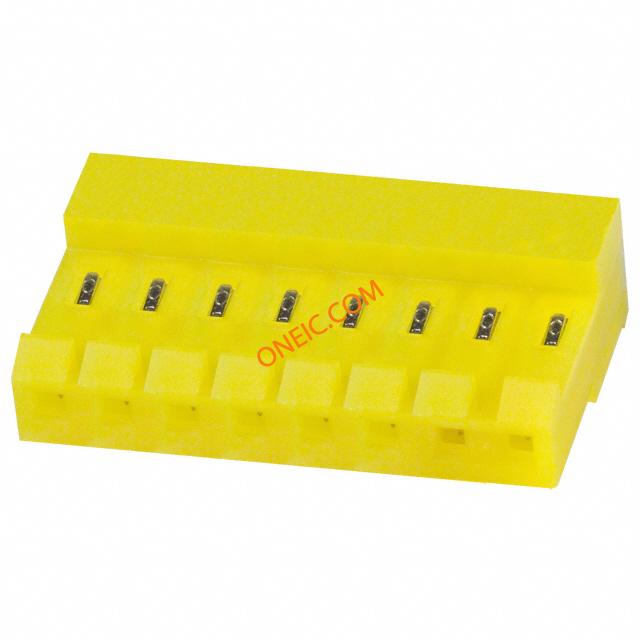

3-640427-8

点击放大查看

3-640427-8

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8POS 20AWG MTA156 MTA 156 8W SKT 20AWG Headers & Wire Housings CLOSED W/O TABS 8P L.R. yellow 20 AWG Conn IDC Connector F 8 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156CONNECTORTIN,08PMTA156CONNASSY20AWGYEL Plug; wire-board; female; PIN:8; 3.96mm; IDC; for cable; MTA-156 Cable socket, straight 8P, 3-640427-8, TE Connectivity TE Connectivity MTA-156 系列 8路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 08P MTA156 CONN ASSY 20AWG YEL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2材料阻燃等级UL94V-2

电气参数

额定电压600 V ac极数8
开关功能Locking Ramp供电电压600
接触电阻3 mohm连接器阻抗刺破式压接 (IDC)
最大额定电流7A最小供电电压600VAC

机械参数

颜色Yellow深度9.02 mm
间距3.96 mm高度18.42 mm
长度31.7 mm [ 1.248 in ]密封型Not Sealed
重量4.03 g包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色黄色
电缆类型分离式导线导线线规20 AWG
方向直角端接方式IDT
触头类型Female Socket柱间距3.96mm
基体材料polyamide外壳颜色Yellow
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
引脚数8排数1
封装形式Receptacle壳体镀层Nickel
外壳材料（壳体）标准外形插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度31.7 mm包装数量1
面板安装类型不带主要材料InterconnectSystem
端接排数IDC电缆端接方式IDC
连接器 - 电缆plug端接样式IDC
第一触头极性Socket (Female)连接器颜色yellow
触点数8接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数8
第一连接器极性Female兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
触点材料 - 镀层tinned静电放电屏蔽带有
护套（绝缘）厚度30 µm [ .762 µin ]第一连接器安装特征1x8

产品信息

SPG1类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End制造商全称MTA-156
产品子类型Connector Assemblies适配器系列MTA-156
放大器类型31.7单元数量1
安装类型Closed End输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度+105°C
