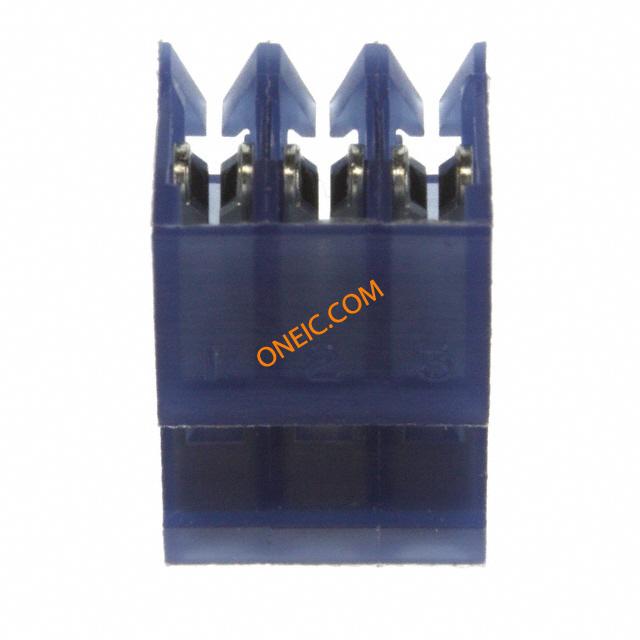

641192-3

点击放大查看

641192-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG BLU MTA-100 Headers & Wire Housings 03P MTA100 CONN ASSY Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector3 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY BLU 26AWG
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量5

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5 A

机械参数

颜色Blue间距2.54 mm
高度6.99 mm [ .275 in ]长度7.62 mm [ .3 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规26 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Gold Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
连接器用途Receptacle插入件材料铜合金
触头材料Phosphor Bronze壳体材料Nylon
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数3
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数3
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
表面贴装焊盘尺寸Without接触镀层厚度15µin (0.38µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]
静电放电屏蔽带有护套（绝缘）厚度1.27 – 1.78 µm, 50 – 70.079 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
