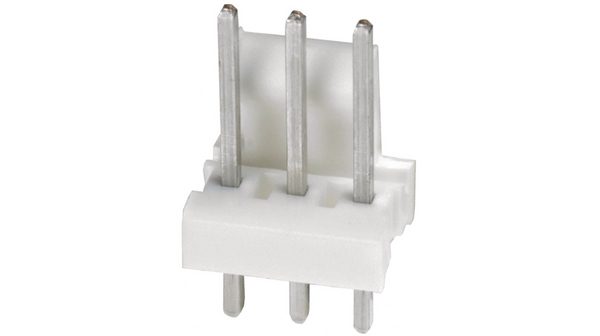

640456-3

点击放大查看

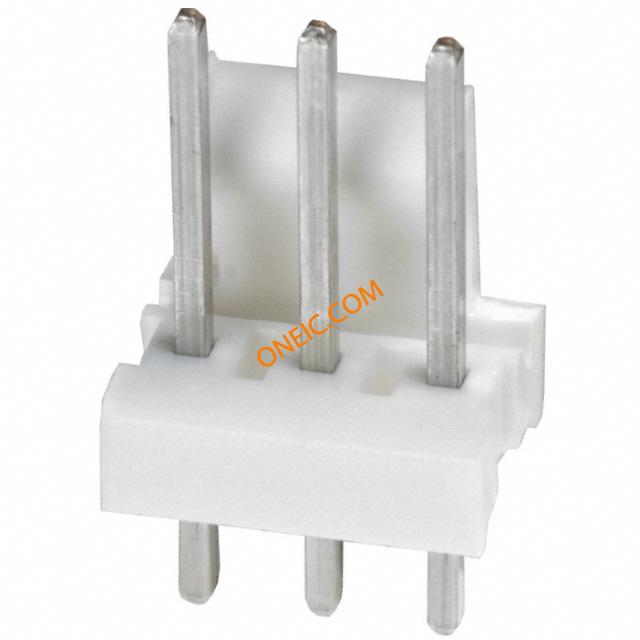

640456-3

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 3P Straight Post tin Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, THT, VERTICAL, 2.54MM, 3WAY Header,FrictionLock;MTA-100;3;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:3; tinned; 2.54mm Pin header 3P, 640456-3, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 03P MTA100 HDR ASSY F/L SQ STR
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准RoHSCompliant,ELVCompliant,UL94V-0海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认证机构CSA,UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 V ac
开关功能Friction Lock工作电压:250V
接触电阻6 mohm额定交流电压250
最大额定电流5A最小输入电压250VAC
最小供电电压250VAC

机械参数

颜色Natural深度5.72 mm
间距2.54 mm高度10.03 mm
重量0.03包装方式Bulk
端口尺寸0.025in.遮蔽类型No
方向straight端接方式Solder
触头类型Male Pin引脚长度（针脚）0.14"
柱间距2.54mm极化Polarizing Slot
第二连接器With触点形状Square
外壳颜色White安装类型Through Hole
行程角度Straight连接器类型Header, Unshrouded
接触镀层Tin紧固类型Friction Lock
安装样式Through Hole排数1
连接器用途Header锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
总长度7.62 mm安装特性Without
包装数量500面板安装类型Without
主要材料InterconnectSystem尺寸/外形0.64 [.025]
连接器 - 电缆socket插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数3
接触件端接:Through Hole Vertical位数3
后壳中断功能Without中心触点镀层工艺0.100in.
柱体长度（配合）0.14in.安装孔直径0.04"
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]恢复后小径No
触点材料 - 镀层tinned第一连接器安装特征1x3

产品信息

SPG500类型Wire to Board
连接器性别HDR系列MTA-100
已删除Compliant产品特性Pinstrip
CAD图纸3D CAD Model制造商全称AMP
产品子类型MTA-100 Connectors适配器系列MTA-100
连接类型Printed Circuit Board单元数量1
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
38054.pdf
在线文档
640456-3
