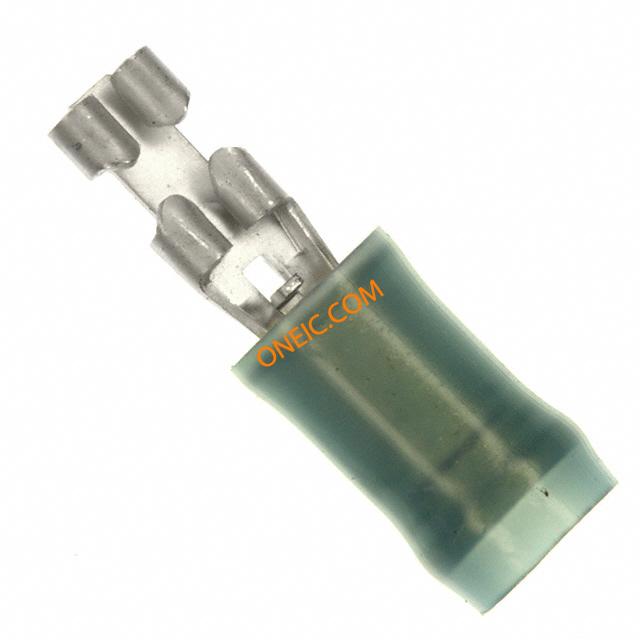

640927-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG F 20.32mm 4.1mm Tin Loose Piece Terminals 16-14 AWG .110 Quick Disconnect Receptacles - Insulated CONN RECEPT FASTON 14-16AWG .110 Receptacle, PIDG FASTON 110, 16-14 AWG Quick Disconnect Terminal 14-16AWG F 20.32mm 4.1mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 1.25-2.00² [16-14] mm [AWG]Tab Fit = 2.79 x 0.41 mmInsulation Diameter = 4.32 [.170] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 0.11IN BLUE AMP;RECEPTACLE;16-14AWG;DIMPLEW/WIRESTOP;TINPLATEDBRASS RECEPT,PIDG FASTON 16-14 110 |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL等级 | Approved | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 供电电压 | 300 | ||
机械参数
| 颜色 | Blue | 深度 | 4.1 mm |
| 表面处理 | Tin | 重量 | 0 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 2.79 x 0.41 [.110 x .016] | 厚度 | 0.41 [0.016] |
| 绝缘类型 | Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 16-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | :0.11 x 0.016" | 插片厚度 | 0.016" (0.41mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 插入力 | Low |
| 触头材料 | Brass | 绝缘颜色 | :Blue |
| 总长度 | 0.800" (20.32mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 绝缘直径 | 4.32 [.170] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | No |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
产品信息
| 连接器性别 | Female | 系列 | 110 |
| 纹理 | Dimple with wire stop | 专有名称 | PIDG FASTON |
