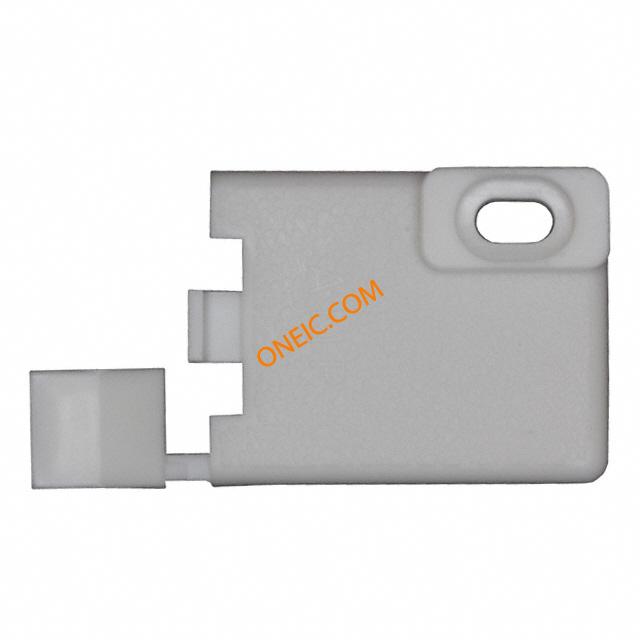

640716-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 09P UMNL STR/REL & INSRT Connector Accessories Strain Relief 9 POS Nylon White Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 9POS Mate-N-Lok cable-clamp housing 9W Pin & Socket Connectors STRN RLF 9P MATRIX QTY 2 REQD FOR SET Connector Accessories Strain Relief 9 POS Nylon White Product Highlights:Strain ReliefUniversal MATE-N-LOK IINylon Housing MaterialColor = WhiteNumber of Circuits = 9Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 9WAY STRAIN RELIEF, 9WAY, NYLON Connector;SoftShell;9;UniversalMATE-N-LOKII;Nylon;Matrix;AMPBrand Cabel hood and fastener; Universal MATE-N-LOK; without screws Strain relief shell, 640716-1, TE Connectivity TE Connectivity 640716 9路 应力释放支架, 使用于 通用 MATE-N-LOK 连接器 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 输出数量 | 9 | 连接器类型 - 电压输入 | Universal MATE-N-LOK II |
机械参数
| 颜色 | White | 深度 | 33.02 mm |
| 宽度 | :26mm | 高度 | 14.73 mm |
| 长度 | :33mm | 重量 | 4.54 |
| 材料（通用） | :Nylon | 柱间距 | 6.35mm |
| 线径 | 3.05 â 16.51 [0.120 â 0.650] | 连接器类型 | SoftShell |
| 安装样式 | Panel | 供货尺寸 | Yes |
| 连接器用途 | cabel hood and fastener | 壳体材料 | Nylon |
| 总长度 | 26.16 mm | 包装数量 | 1 |
| 主要材料 | Interconnect | 端接样式 | Screw |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :White |
| 触点数 | 9 | 位数 | 9 |
| 绝缘材料 - 材质 | :Nylon (Polyamide) | 典型触点布局 | Matrix |
| 外壳与棱镜材料 | polyamide | 第一连接器安装特征 | 3x3 |
| 外径-未扩张 | :16.51mm | ||
产品信息
| SPG | 1 | 备注 | Strain relief part number represents one half of a strain relief. Two of a part |
| 类型 | Strain Relief | 样式 | :#6 x 16 mm Lg Type B Pan head sheet metal screw |
| 系列 | Universal Mate-N-Lok | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Strain Relief | 附件类型 | Strain Relief |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 2 |
| 电路数 | 9 | 射频系列/标准 | 640716 |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | Universal MATE-N-LOK II Series |
文档与媒体
相关型号
770054-1
te connectivity / amp
Conn Housing RCP 9 POS 6.35mm ST Rear Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP REAR 9POS UNIV-MNL II Pin & Socket Connectors 09P CAP REAR 94VO Conn Housing RCP 9 POS 6.35mm ST Rear Piece Product Highlights:HousingUniversal MATE-N-LOK II Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 09P UMNL II CAP REAR 94VO

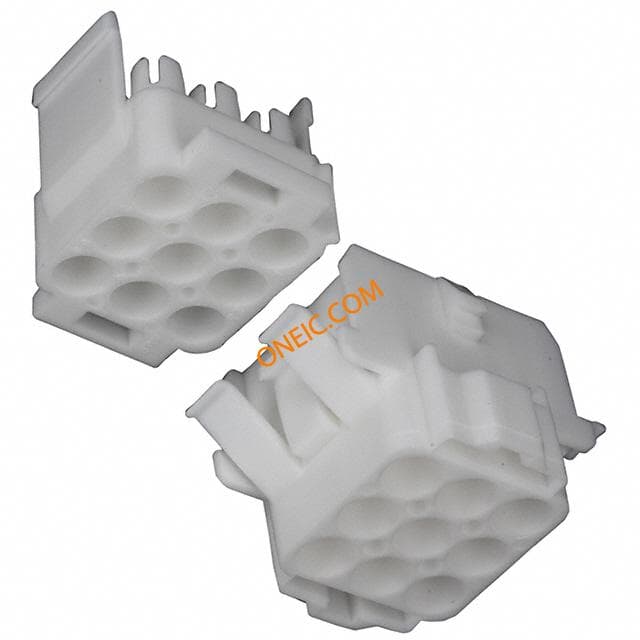

770028-1
