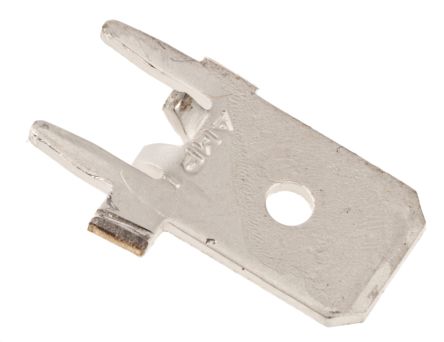

点击放大查看

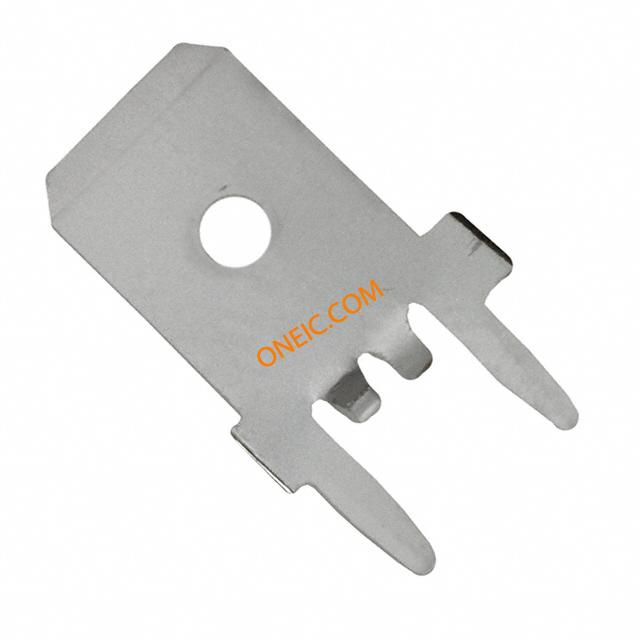

63824-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal M 13.63mm 7.92mm Tin Over Copper/Tin Over Nickel Strip Terminals .25 PCB TAB 032TPBR Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FAST TIN PCB .250 Tab terminal, PCB, FASTON 250, straight Terminals .25 PCB TAB 032TPBR Reel of 10000 Quick Disconnect Terminal M 13.63mm 7.92mm Tin Over Copper/Tin Over Nickel Strip Product Highlights:TabTab Type = Printed Circuit BoardTab Fit = 6.35 x 0.81 mmBrass MaterialTin FinishSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, MALE DISCONNECT, 6.35MM, CRIMP PCBTABSSTRIP,250PCBTAB032TPBR 6.35 x 0.83mm 非绝缘 焊接焊头端子, 镀镀锡铜/镍触点 FASTON 250 PCB TAB TPBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 10,000 | 工厂包装数量 | 10000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Not Required | 深度 | 7.92 mm |
| 表面处理 | Tin | 重量 | 0.002 |
| 镀层 | Tin Over Copper|Tin Over Nickel | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 绝缘类型 | Not Insulated | 插片长度 | 0.312" (7.92mm) |
| 端接方式 | Solder | 基体材料 | Brass |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Male Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 电路板厚度 | 1.57 [0.062] |
| 高度（英寸） | 14.02 [0.552] | 厚度（最大） | 0.81 [0.032] |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | 0.552" (14.02mm) | 包装数量 | Standard Reel |
| 绝缘高度 | Without | 插针孔直径 | 1.40 [0.055] |
| 端接样式 | Crimp | 接触件端接 | Without |
| 绝缘材料 - 类型 | Non-Insulated | 安装孔直径 | Without |
产品信息
| 备注 | Insertion equipment available.; 082 brass material. | 类型 | Quick Disconnect Terminal |
| 连接器性别 | Male | 系列 | :Faston |
| 产品子类型 | Tab | 其他规格 | Printed Circuit Board |
