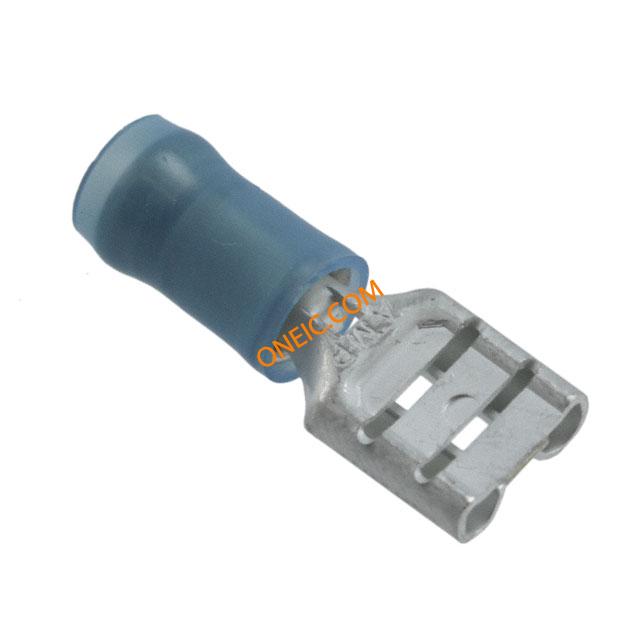

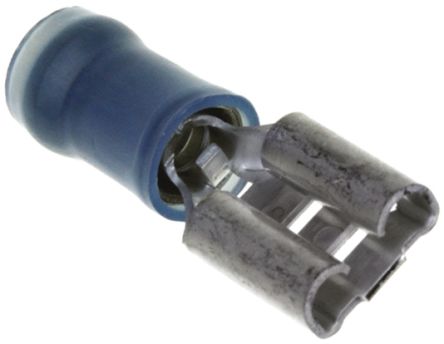

8-640905-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG F 22.9mm 7.62mm Tin Loose Piece Terminals PIDG 16-14 .250 Quick Disconnect Receptacles - Insulated CONN RECEPT FASTON 14-16AWG 250 Quick Disconnect Terminal 14-16AWG F 22.9mm 7.62mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 1.25-2.00² [16-14] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 4.32 [.170] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 6.35MM BLUE SEE512-4388640905-1 TE Connectivity PIDG FASTON .250 系列 蓝色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 RECEPT,PIDG FASTON 16-14 250 |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | 86409051 |
| 产品类别 | Terminals | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RU(ULComponentProgram)Approved,CSACertified |
| 海关税号 | 85369010 | UL等级 | Approved |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 深度 | 7.62 mm |
| 表面处理 | Tin | 重量 | 0.136 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.46 [0.018] |
| 绝缘类型 | Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 16-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 插入力 | Normal | 总宽度 | 0.3" |
| 触头材料 | Brass | 绝缘颜色 | :Blue |
| 总长度 | 0.900" (22.86mm) | 包装数量 | Loose Piece |
| 主要材料 | QuickDisconnect | 绝缘高度 | Insulation Support |
| 绝缘直径 | 4.32 [.170] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | No | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | ||
产品信息
| 类型 | Quick Disconnect Ter | 样式 | Straight |
| 连接器性别 | Female | 系列 | 250 |
| 纹理 | Dimple with wire stop | 制造商全称 | PIDGFASTON |
| 专有名称 | PIDG FASTON | ||
